品牌： 台湾佳贺固力普AUTOGRIP
爪数： 四爪
动力类型： 液压
特殊用途类型： 中实

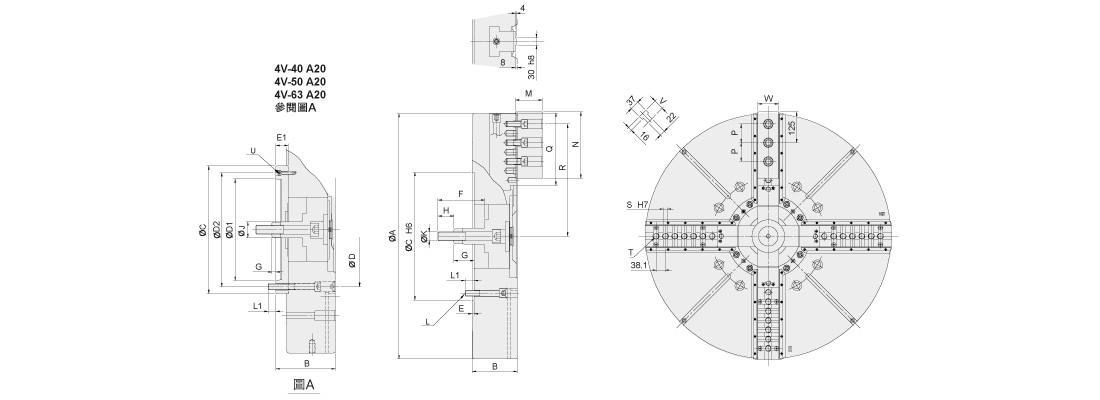

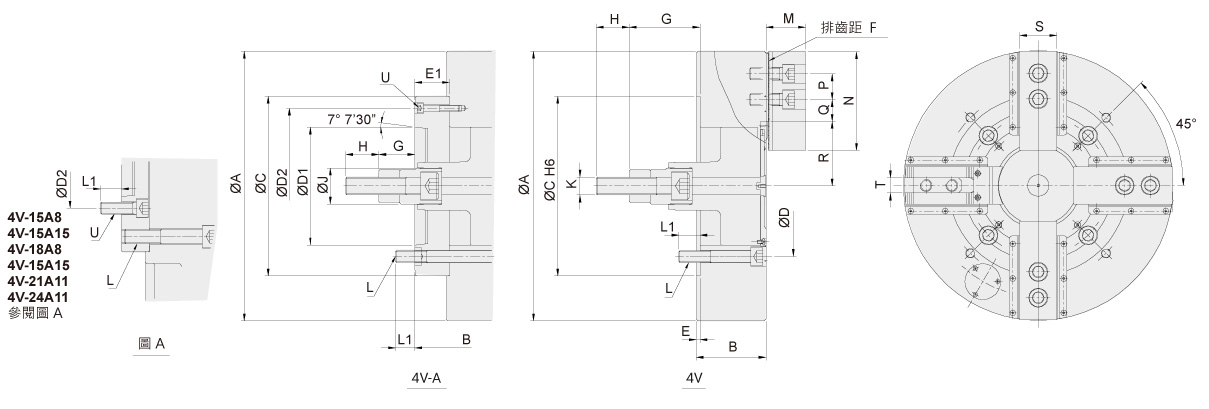

| 型号 | - | A | B | B | C | D | D1 | D2 | E | E1 | F | G max. | G max. | G min. | G max. | H | J | K | L | L1 | L1 | M | N | P | Q max. | Q min. | R max. | R min. | S | T | U | V | W |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4V-12 | A8 | 304 | 107 | 141 | 220 | 171.4 | 139.72 | 190 | 6 | 40 | 1.5 | 113 | 73 | 83 | 43 | 36 | 50 | M20x2.5 | 3~M16 | 24 | 24 | 42 | 110 | 30 | 51.75 | 15.75 | 61.3 | 54.9 | 40 | 16 | 3~M8 | - | - |
| 4V-15 | A8 | 381 | 116 | 164 | 300 | 235 | 139.72 | 171.4 | 6 | 54 | 1.5 | 153 | 99 | 118 | 64 | 55 | 60 | M30x3.5 | 6~M20 | 35 | 24 | 66 | 165 | 43 | 40.75 | 18.25 | 87.5 | 79.4 | 62 | 25.5 | 6~M16 | - | - |
| 4V-15 | A11 | 381 | 116 | 168 | 300 | 235 | 196.87 | 260 | 6 | 58 | 1.5 | 153 | 95 | 118 | 60 | 55 | 60 | M30x3.5 | 6~M20 | 35 | 32 | 66 | 165 | 43 | 40.75 | 18.25 | 87.5 | 79.4 | 62 | 25.5 | 3~M10 | - | - |
| 4V-15 | A15 | 381 | 116 | 172 | 380 | 235 | 285.78 | 330.2 | 6 | 62 | 1.5 | 153 | 91 | 118 | 56 | 55 | 60 | M30x3.5 | 6~M20 | 35 | 26 | 66 | 165 | 43 | 40.75 | 18.25 | 87.5 | 79.4 | 62 | 25.5 | 6~M24 | - | - |
| 4V-18 | A8 | 450 | 116 | 164 | 300 | 235 | 139.72 | 171.4 | 6 | 54 | 1.5 | 118 | 99 | 83 | 64 | 55 | 60 | M30x3.5 | 6~M20 | 35 | 24 | 66 | 165 | 43 | 51.22 | 18.22 | 108 | 100 | 62 | 25.5 | 6~M16 | - | - |
| 4V-18 | A11 | 450 | 116 | 168 | 300 | 235 | 196.87 | 260 | 6 | 58 | 1.5 | 118 | 95 | 83 | 60 | 55 | 60 | M30x3.5 | 6~M20 | 35 | 32 | 66 | 165 | 43 | 51.22 | 18.22 | 108 | 100 | 62 | 25.5 | 3~M10 | - | - |
| 4V-18 | A15 | 450 | 116 | 172 | 380 | 235 | 285.78 | 330.2 | 6 | 62 | 1.5 | 118 | 91 | 83 | 56 | 55 | 60 | M30x3.5 | 6~M20 | 35 | 26 | 66 | 165 | 43 | 51.22 | 18.22 | 108 | 100 | 62 | 25.5 | 6~M24 | - | - |
| 4V-21 | A11 | 530 | 127 | 167 | 380 | 330.2 | 196.87 | 235 | 6 | 46 | 3 | 137 | 91 | 102 | 56 | 55 | 60 | M30x3.5 | 6~M24 | 41 | 35 | 74 | 180 | 60 | 72.5 | 24.5 | 89 | 81 | 65 | 25 | 6~M20 | - | - |
| 4V-21 | A15 | 530 | 127 | 167 | 380 | 330.2 | 285.78 | 330.2 | 6 | 46 | 3 | 137 | 91 | 102 | 56 | 55 | 60 | M30x3.5 | 6~M24 | 41 | 35 | 74 | 180 | 60 | 72.5 | 24.5 | 89 | 81 | 65 | 25 | 3~M12 | - | - |
| 4V-24 | A11 | 610 | 127 | 167 | 380 | 330.2 | 196.87 | 235 | 6 | 46 | 3 | 137 | 91 | 102 | 56 | 55 | 60 | M30x3.5 | 6~M24 | 41 | 35 | 74 | 180 | 60 | 93.5 | 24.5 | 128 | 120 | 65 | 25 | 6~M20 | - | - |
| 4V-24 | A15 | 610 | 127 | 167 | 380 | 330.2 | 285.78 | 330.2 | 6 | 46 | 3 | 137 | 91 | 102 | 56 | 55 | 60 | M30x3.5 | 6~M24 | 41 | 35 | 74 | 180 | 60 | 93.5 | 24.5 | 128 | 120 | 65 | 25 | 3~M12 | - | - |
| 4V-32 | A15 | 800 | 147 | 187 | 380 | 330.2 | 285.78 | 330.2 | 6 | 46 | 3 | 100 | 54 | 65 | 19 | 55 | 60 | M30x3.5 | 6~M24 | 36 | 35 | 74 | 180 | 60 | 189.5 | 24.5 | 128 | 120 | 65 | 25 | 3~M12 | - | - |
| 4V-40 | A20 | 1000 | 184 | 226 | 520 | 463.6 | 412.78 | 463.6 | 8 | 50 | 190 | 139 | 89 | 82 | 32 | 65 | 65 | M36x4 | M24 | 37 | - | 110 | 270 | 76.2 | 295 | - | 457 | 404 | 6~19.03 | 7~M24 | 3~M12 | 42 | 84 |
| 4V-50 | A20 | 1250 | 200 | 242 | 520 | 463.6 | 412.78 | 463.6 | 8 | 50 | 190 | 123 | 73 | 66 | 16 | 65 | 65 | M36x4 | M24 | 37 | - | 110 | 270 | 76.2 | 416 | - | 563 | 510 | 9~19.03 | 9~M24 | 3~M12 | 45 | 84 |
| 4V-63 | - | 1600 | 240 | - | 720 | 647.6 | - | 463.6 | 8 | - | 214 | 133 | - | 73 | - | 65 | 65 | M36x4 | M30 | 46 | - | 110 | 270 | 76.2 | 540 | - | 738 | 674 | 12~19.03 | 13~M24 | - | 42 | 110 |
| 型号 | - | 楔心行程 (mm) | 爪行程(直径) (mm) | 最大夹持直径 (mm) | 最小夹持直径 (mm) | 容许最大入力 kN(kgf) | 最大夹持力 kN (kgf) | 最高回转数 min-1 (r.p.m.) | I kg‧m 2 | I kg‧m 2 | 重量 (kg) | 重量 (kg) | 适用回转缸 | 最大使用压力 MPa (kgf/cm2) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4V-12 | A8 | 30 | 12.7 | 304 | 48 | 41 (4180) | 156 (15900) | 2520 | 0.71 | 0.77 | 60.5 | 68 | RK-150 RE-150 | 2.9(29) |
| 4V-15 | A8 | 35 | 16 | 381 | 36 | 81.9 (8360) | 245.1 (25000) | 2300 | 2.08 | 2.37 | 111 | 131 | RK-200 RE-200K | 3.2(32) 3.4(34) |
| 4V-15 | A11 | 35 | 16 | 381 | 36 | 81.9 (8360) | 245.1 (25000) | 2300 | 2.08 | 2.37 | 111 | 130 | RK-200 RE-200K | 3.2(32) 3.4(34) |
| 4V-15 | A15 | 35 | 16 | 381 | 36 | 81.9 (8360) | 245.1 (25000) | 2300 | 2.08 | 2.77 | 111 | 139 | RK-200 RE-200K | 3.2(32) 3.4(34) |
| 4V-18 | A8 | 35 | 16 | 450 | 60 | 81.9 (8360) | 245.1 (25000) | 2050 | 3.67 | 3.95 | 141 | 163 | RK-200 RE-200K | 3.2(32) 3.4(34) |
| 4V-18 | A11 | 35 | 16 | 450 | 60 | 81.9 (8360) | 245.1 (25000) | 2050 | 3.67 | 3.95 | 141 | 162 | RK-200 RE-200K | 3.2(32) 3.4(34) |
| 4V-18 | A15 | 35 | 16 | 450 | 60 | 81.9 (8360) | 245.1 (25000) | 2050 | 3.67 | 4.35 | 141 | 173 | RK-200 RE-200K | 3.2(32) 3.4(34) |
| 4V-21 | A11 | 35 | 16 | 530 | 62 | 81.9 (8360) | 271.6 (27700) | 1450 | 7.25 | 7.88 | 201 | 237 | RK-200 RE-200K | 3.2(32) 3.4(34) |
| 4V-21 | A15 | 35 | 16 | 530 | 62 | 81.9 (8360) | 271.6 (27700) | 1450 | 7.25 | 7.79 | 201 | 226 | RK-200 RE-200K | 3.2(32) 3.4(34) |
| 4V-24 | A11 | 35 | 16 | 610 | 152 | 81.9 (8360) | 271.6 (27700) | 1350 | 11.51 | 12.14 | 247 | 278 | RK-200 RE-200K | 3.2(32) 3.4(34) |
| 4V-24 | A15 | 35 | 16 | 610 | 152 | 81.9 (8360) | 271.6 (27700) | 1350 | 11.51 | 12.04 | 247 | 272 | RK-200 RE-200K | 3.2(32) 3.4(34) |
| 4V-32 | A15 | 35 | 16 | 800 | 152 | 81.9 (8360) | 271.6 (27700) | 880 | 32.07 | 32.76 | 393 | 416 | RK-200 RE-200K | 3.2(32) 3.4(34) |
| 4V-40 | A20 | 57 | 46+(60) | 1000 | 310 | 180 (18350) | 320 (32620) | 500 | 70 | 94 | 740 | 790 | RK-250 RE-250 RE-A250 RE-L250 | 4.2(42) |
| 4V-50 | A20 | 57 | 46+(60) | 1250 | 290 | 180 (18350) | 320 (32620) | 450 | 222 | 224 | 1130 | 1180 | RK-250 RE-250 RE-A250 RE-L250 | 4.2(42) |
| Model | 2D pdf | 2D dwg | 3D step |
|---|---|---|---|
| 4V-12A8 |
|
|
|
| 4V-15A8 |
|
|
|
| 4V-15A11 |
|
|
|
| 4V-15A15 |
|
|
|
| 4V-18A8 |
|
|
|
| 4V-18A11 |
|
|
|
| 4V-18A15 |
|
|
|
| 4V-21A11 |
|
|
|
| 4V-21A15 |
|
|
|
| 4V-24A11 |
|
|
|
| 4V-24A15 |
|
|
|
| 4V-32A15 |
|
|
|
| 4V-40 |
|
|
|
| 4V-40A20 |
|
|
|
| 4V-50 |
|
|
|
| 4V-50A20 |
|
|
|
| 4V-63 |
|
|
|
