品牌： 台湾佳贺固力普AUTOGRIP
爪数： 三爪
动力类型： 液压
特殊用途类型： 中实

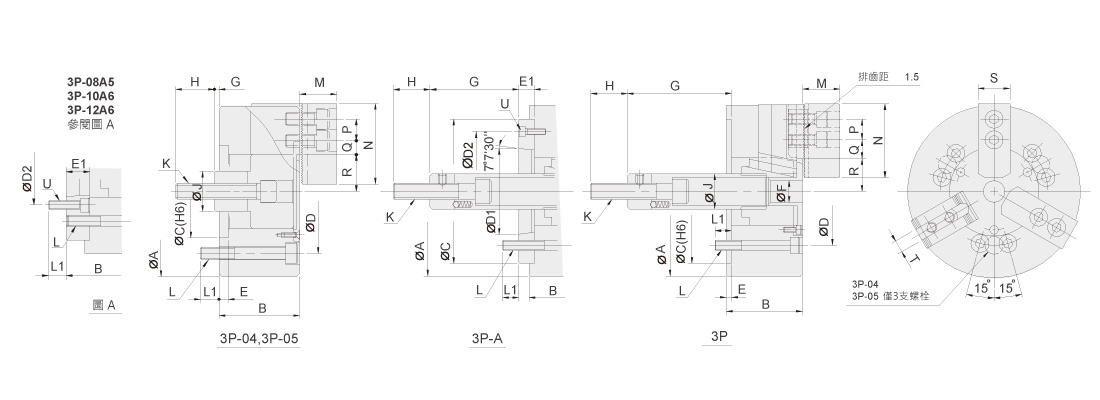

| 型号 | - | A | B | B | C | D | D1 | D2 | E | E1 | F | G max. | G max. | G min. | G min. | H | J | K | L | L1 | L1 | M | N | P | Q max. | Q min. | R max. | R min. | S | T | U |
| 3P-04 | - | 110 | 52 | - | 60 | 80 | - | - | 6 | - | - | 18 | - | 3 | - | 25 | 26 | M10x1.5 | 3~M8 | 12 | - | 24 | 52 | 14 | 11.2 | 6.7 | 23.6 | 20.4 | 23 | 10 | - |
| 3P-05 | - | 135 | 55 | - | 80 | 100 | - | - | 7 | - | - | 9 | - | -6 | - | 35 | 28 | M12x1.75 | 3~M8 | 14 | - | 31 | 62 | 14 | 15.7 | 5.2 | 30.4 | 27.2 | 25 | 10 | - |
| 3P-06 | A5 | 165 | 74 | 84 | 140 | 104.8 | 82.56 | 116 | 5 | 15 | 21 | 102.6 | 87.6 | 82.6 | 67.6 | 35 | 34 | M16x2 | 6~M10 | 14 | 14 | 37 | 73 | 20 | 18.25 | 9.25 | 38.25 | 33.75 | 31 | 12 | 3~M6 |
| 3P-08 | A5 | 210 | 85 | 103 | 170 | 133.4 | 82.56 | 104.8 | 5 | 23 | 25 | 127 | 104 | 106 | 83 | 36 | 38 | M20x2.5 | 6~M12 | 20 | 17 | 38 | 95 | 25 | 25.25 | 11.75 | 46.3 | 41.9 | 35 | 14 | 6~M10 |
| 3P-08 | A6 | 210 | 85 | 97 | 170 | 133.4 | 106.38 | 150 | 5 | 17 | 25 | 127 | 110 | 106 | 89 | 36 | 38 | M20x2.5 | 6~M12 | 20 | 18 | 38 | 95 | 25 | 25.25 | 11.75 | 46.3 | 41.9 | 35 | 14 | 3~M6 |
| 3P-10 | A6 | 254 | 89 | 109 | 220 | 171.4 | 106.38 | 133.4 | 5 | 25 | 34 | 158 | 133 | 133 | 108 | 36 | 45 | M20x2.5 | 6~M16 | 18 | 18 | 43 | 110 | 30 | 35.25 | 12.75 | 51.1 | 46.7 | 40 | 16 | 6~M12 |
| 3P-10 | A8 | 254 | 89 | 102 | 220 | 171.4 | 139.72 | 190 | 5 | 18 | 34 | 158 | 140 | 133 | 115 | 36 | 45 | M20x2.5 | 6~M16 | 18 | 25 | 43 | 110 | 30 | 35.25 | 12.75 | 51.1 | 46.7 | 40 | 16 | 3~M8 |
| 3P-12 | A6 | 304 | 106 | 125 | 220 | 171.4 | 106.38 | 133.4 | 6 | 25 | 34 | 163 | 138 | 133 | 108 | 36 | 50 | M20x2.5 | 6~M16 | 18 | 18 | 51 | 130 | 30 | 48.75 | 12.75 | 61 | 55.75 | 50 | 18 / | 6~M12 |
| 21 | |||||||||||||||||||||||||||||||
| 3P-13 | A8 | 304 | 106 | 118 | 220 | 171.4 | 139.72 | 190 | 6 | 18 | 34 | 163 | 145 | 133 | 115 | 36 | 50 | M20x2.5 | 6~M16 | 18 | 25 | 51 | 130 | 30 | 48.75 | 12.75 | 61 | 55.75 | 50 | 18 / | 3~M8 |
| 21 |
| 型号 | - | 楔心行程 (mm) | 爪行程(直径) (mm) | 最大夹持直径 (mm) | 最小夹持直径 (mm) | 容许最大入力 kN (kgf) | 最大夹持力 kN (kgf) | 最高回转数 min-1(r.p.m.) | I kg‧m2 | 重量 (kg) | 重量 (kg) | 适用回转缸 | 最大使用压力 MPa(kgf/cm2) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

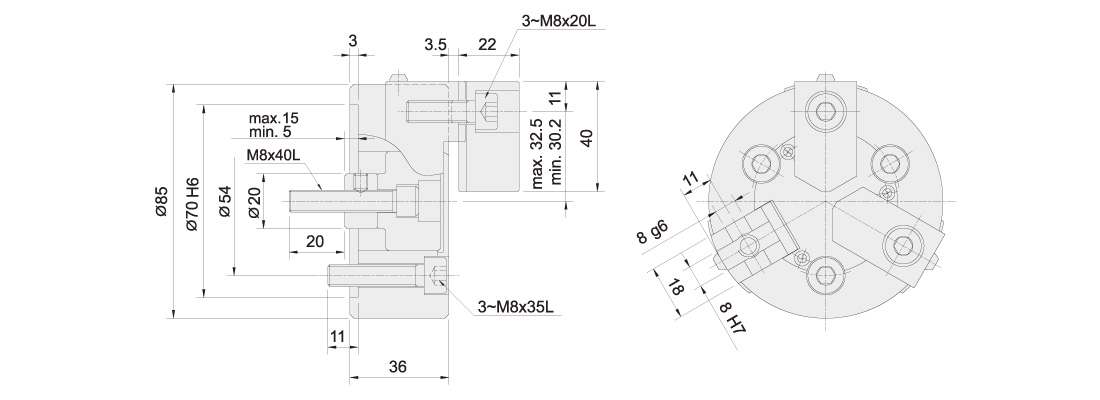

| 3P-03 | - | 10 | 4.6 | 85 | 3 | 4.5(460) | 11.3(1150) | 7000 | 0.004 | 1.8 | - | RK-75 | 1.2(12.4) |
| 3P-04 | - | 15 | 6.4 | 110 | 5 | 8.1(830) | 22.5(2300) | 6000 | 0.01 | 4.1 | - | RK-75(N) RA-130 | 2.2(22) 0.6(6) |
| 3P-05 | - | 15 | 6.4 | 135 | 14 | 8.1(830) | 25(2550) | 5500 | 0.02 | 6.2 | - | RK-75(N) RA-130 | 2.2(22) 0.6(6) |
| 3P-06 | A5 | 20 | 8.5 | 165 | 16 | 17.9(1830) | 52.4(5350) | 5250 | 0.05 | 13 | 14 | RK-100(N) RA-170 | 2.6(26) 0.6(6) |
| 3P-08 | A5 | 21 | 8.8 | 210 | 21 | 25(2550) | 74.5(7600) | 4750 | 0.14 | 24 | 28 | RK-125(N) RA-220 | 2.3(23) 0.5(5) |
| 3P-08 | A6 | 21 | 8.8 | 210 | 21 | 25(2550) | 74.5(7600) | 4750 | 0.14 | 24 | 27 | RK-125(N) RA-220 | 2.3(23) 0.5(5) |
| 3P-10 | A6 | 25 | 8.8 | 254 | 24 | 28.9(2950) | 107.8(11000) | 4000 | 0.3 | 35 | 42 | RK-125(N) RA-220 | 2.6(26) 0.6(6) |
| 3P-10 | A8 | 25 | 8.8 | 254 | 24 | 28.9(2950) | 107.8(11000) | 4000 | 0.3 | 35 | 40 | RK-125(N) RA-220 | 2.6(26) 0.6(6) |
| 3P-12 | A6 | 30 | 10.5 | 304 | 24 | 41(4180) | 155.8(15900) | 3360 | 0.73 | 59 | 65 | RK-150(N) RA-270 | 2.6(26) 0.8(8) |
| 3P-12 | A8 | 30 | 10.5 | 304 | 24 | 41(4180) | 155.8(15900) | 3360 | 0.73 | 59 | 63 | RK-150(N) RA-270 | 2.6(26) 0.8(8) |
| Model | 2D pdf | 2D dwg | 3D step |
|---|---|---|---|
| 3P-03 |
|
|
|
| 3P-04 |
|
|
|
| 3P-05 |
|
|
|
| 3P-06 |
|
|
|
| 3P-06A5 |
|
|
|
| 3P-08 |
|
|
|
| 3P-08A5 |
|
|
|
| 3P-08A6 |
|
|
|
| 3P-10 |
|
|
|
| 3P-10A6 |
|
|
|
| 3P-10A8 |
|
|
|
| 3P-12 |
|
|
|
| 3P-12A6 |
|
|
|
| 3P-12A8 |
|
|
|
