品牌： 台湾千岛CHANDOX
爪数： 二爪
动力类型： 液压
特殊用途类型： 超长爪行程
NEW 专利编号:M588030

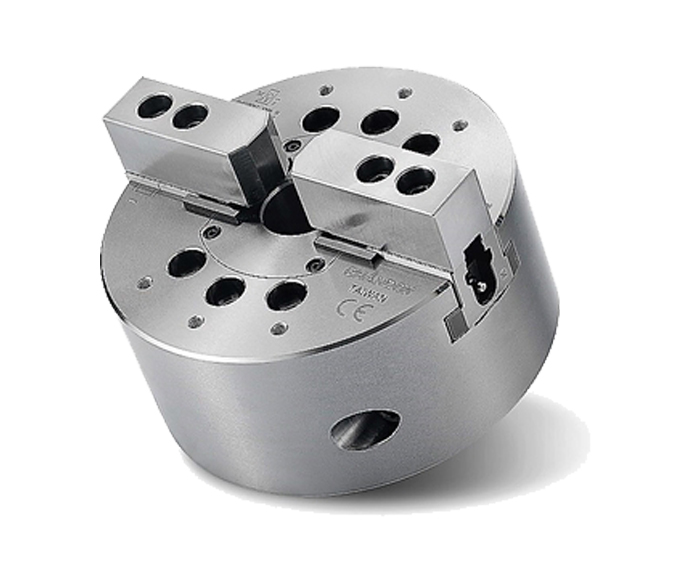

二中空超长行程夹头

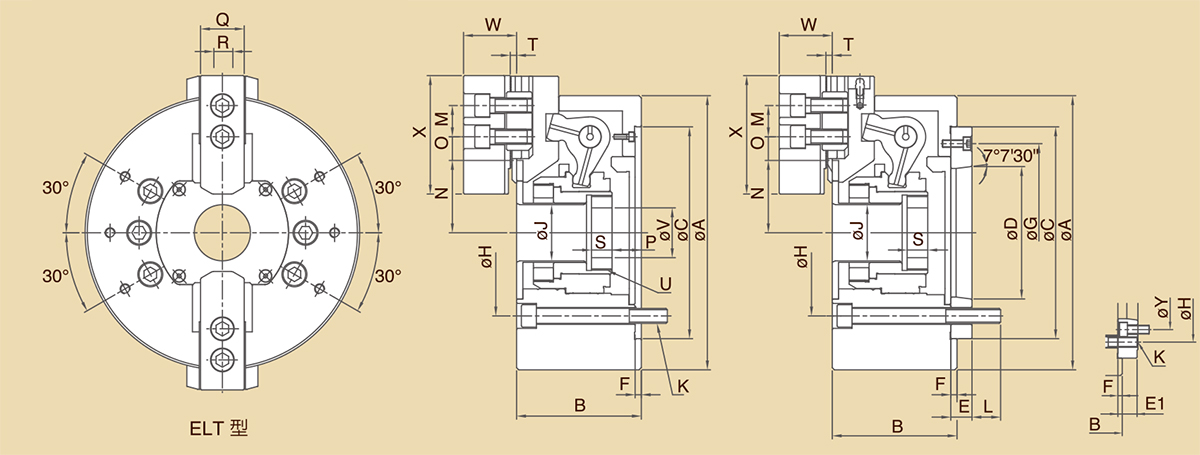

尺寸图
規格書
單位 / mm
| 型式 / 規格 | 主軸鼻端番號 | A | B | C (h6) | D | E | E1 | F | G | H | H1 | I1 | H2 |
| OP-206L | A 2-5 | 173 | 87 | 140 | 82.563 | 15 | - | 5 | 116 | 104.8 | PCDØ90 | 3-M8×1.25P | PCDØ140 |
| OP-208L | A 2-6(A 2-5) | 215 | 103 | 170 | 106.375 | 17 | 23 | 5 | 150 | 133.4 | PCDØ120 | 3-M8×1.25P | PCDØ170 |
| OP-210L | A 2-8(A 2-6) | 256 | 112 | 220 | 139.719 | 18 | 28 | 5 | 190 | 171.4 | PCDØ160 | 3-M12×1.75P | PCDØ220 |
| OPT-206L | A 2-5 | 173 | 87 | 140 | 82.563 | 15 | - | 5 | 116 | 104.8 | PCDØ145 | 6-M10×1.5P | - |
| OPT-208L | A 2-6(A 2-5) | 215 | 103 | 170 | 106.375 | 17 | 23 | 5 | 150 | 133.4 | PCDØ180 | 6-M10×1.5P | - |
| OPT-210L | A 2-8(A 2-6) | 256 | 112 | 220 | 139.719 | 18 | 28 | 5 | 190 | 171.4 | PCDØ225 | 6-M12×1.75P | - |
| 型式 / 規格 | I2 | J | K | L | M | N max. | N min | O max. | O min. | P max. | P min. | Q | R | S | T | U | V | W | X |
| OP-206L | 3-M8×1.25P | 45 | 6-M10×1.5P | 15 | 20 | 39.07 | 33.46 | 21.05 | 10.55 | 11 | -4 | 31 | 12 | 19 | 2 | M55×2P | 20 | 37.5 | 73 |
| OP-208L | 3-M8×1.25P | 52 | 6-M12×1.75P | 21 | 25 | 47.85 | 39.66 | 25.05 | 14.55 | 14.5 | -7.5 | 35 | 14 | 20.5 | 2 | M60×2P | 30 | 39.5 | 95 |
| OP-210L | 3-M12×1.75P | 75 | 6-M16×2P | 22 | 30 | 61.34 | 52.06 | 29.05 | 12.55 | 8.5 | -16.5 | 40 | 16 | 25 | 2 | M85×2P | 40 | 43 | 110 |
| OPT-206L | - | 45 | 6-M10×1.5P | 15 | 20 | 39.07 | 33.46 | 21.05 | 10.55 | 11 | -4 | 31 | 12 | 19 | 2 | M55×2P | 20 | 37.5 | 73 |
| OPT-208L | - | 52 | 6-M12×1.75P | 21 | 25 | 47.85 | 39.66 | 25.05 | 14.55 | 14.5 | -7.5 | 35 | 14 | 20.5 | 2 | M60×2P | 30 | 39.5 | 95 |
| OPT-210L | - | 75 | 6-M16×2P | 22 | 30 | 61.34 | 52.06 | 29.05 | 12.55 | 8.5 | -16.5 | 40 | 16 | 25 | 2 | M85×2P | 40 | 43 | 110 |
| 型式 / 規格 | Y | 通孔直徑 (mm) | 柱塞行程 (mm) | 爪行程 [直徑] (mm) | 最高迴轉數 r.p.m. (min -1) | 最大拉力 kgf (KN) | 最大靜夾持力 kgf (KN) | 最大設定 油壓壓力 kgf/cm 2 (Mpa) | 淨重(kg) | 搭配油壓缸型號 | 夾持範圍 |
| OP-206L | - | 45 | 15 | 10.8 | 4300 | 2140 (21) | 4080 (40) | 28 (2.7) | 14.9 | P1246 | Ø20~Ø173 |
| OP-208L | 104.8 | 52 | 22 | 16 | 3500 | 3360 (33) | 5910 (58) | 26 (2.5) | 37 | P1552 | Ø25~Ø215 |
| OP-210L | 133.4 | 75 | 25 | 18 | 3000 | 4280 (42) | 7540 (74) | 27 (2.6) | 40.6 | P1875 | Ø40~Ø256 |
| OPT-206L | - | 45 | 15 | 10.8 | 4300 | 1420 (14) | 2650 (26) | 18.5 (1.8) | 14.5 | P1246 | Ø20~Ø173 |
| OPT-208L | 104.8 | 52 | 22 | 16 | 3500 | 2240 (22) | 3870 (38) | 17 (1.7) | 26.4 | P1552 | Ø25~Ø215 |
| OPT-210L | 133.4 | 75 | 25 | 18 | 3000 | 2850 (28) | 4990 (49) | 18 (1.8) | 39.5 | P1875 | Ø40~Ø256 |
