品牌： 台湾千岛CHANDOX
爪数： 二爪
动力类型： 液压
特殊用途类型： 中实

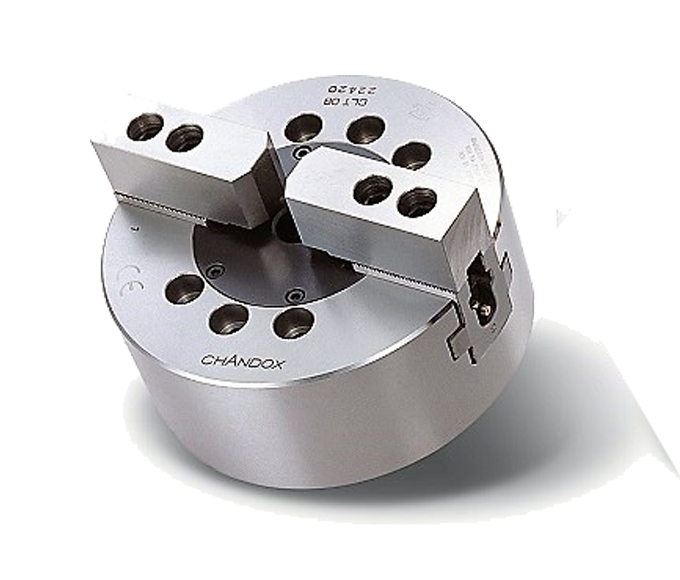

二爪中实油压夹头

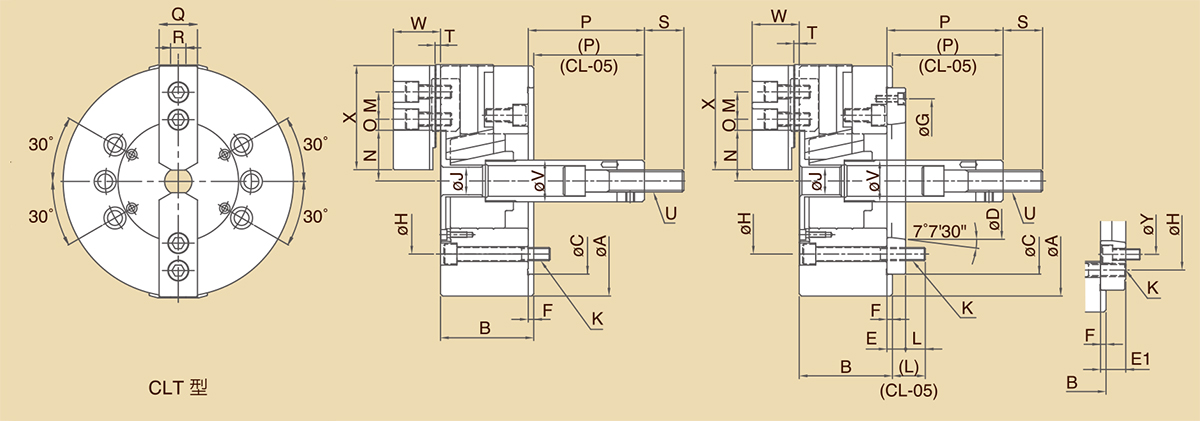

尺寸图
規格書
單位 / mm
| 型式 / 規格 | 主軸鼻端番號 | A | B | C (h6) | D | E | E1 | F | G | H |
| CL-05 | A2-4 | 135 | 55 | 80 | 63.513 | - | - | 7 | - | 100 |
| CL-06 | A2-5 | 165 | 74 | 140 | 82.563 | 15 | - | 5 | 116 | 104.8 |
| CL-08 | A2-6(A2-5) | 210 | 85 | 170 | 106.375 | 17 | 23 | 5 | 150 | 133.4 |
| CL-10 | A2-8(A2-6) | 254 | 89 | 220 | 139.719 | 18 | 28 | 5 | 190 | 171.4 |
| CL-12 | A2-8 | 304 | 106 | 220 | 139.719 | 18 | - | 6 | 190 | 171.4 |
| CLT-06 | A2-5 | 165 | 74 | 140 | 82.563 | 15 | - | 5 | 116 | 104.8 |
| CLT-08 | A2-6(A2-5) | 210 | 85 | 170 | 106.375 | 17 | 23 | 5 | 150 | 133.4 |
| CLT-10 | A2-8(A2-6) | 254 | 89 | 220 | 139.719 | 18 | 28 | 5 | 190 | 171.4 |
| CLT-12 | A2-8 | 304 | 106 | 220 | 139.719 | 18 | - | 6 | 190 | 171.4 |
| 型式 / 規格 | J | K | L | M | N max. | N min. | O max. | O min. | P max. | P min. | Q | R | S | T | U | V | W |
| CL-05 | - | 3-M8×1.25P | 14 | 14 | 30.4 | 27.2 | 17.1 | 9.6 | 9 | -6 | 25 | 10 | 35 | 2 | M12×1.75P | 28 | 31 |
| CL-06 | 21 | 6-M10×1.5P | 19 | 20 | 37.8 | 33.25 | 15.1 | 9.1 | 101.5 | 81.5 | 31 | 12 | 36 | 4 | M16×2P | 34 | 39 |
| CL-08 | 25 | 6-M12×1.75P | 18 | 25 | 46.3 | 41.9 | 22.1 | 10.1 | 127 | 106 | 35 | 14 | 36 | 5 | M20×2.5P | 38 | 42 |
| CL-10 | 34 | 6-M16×2P | 25 | 30 | 51.4 | 47 | 30.6 | 9.6 | 158 | 133 | 40 | 16 | 36 | 5 | M20×2.5P | 45 | 46 |
| CL-12 | 34 | 6-M16×2P | 20 | 30 | 60.63 | 55.32 | 48.55 | 20.05 | 163 | 133 | 50 | 18 | 36 | 5 | M20×2.5P | 50 | 54 |
| CLT-06 | 21 | 6-M10×1.5P | 19 | 20 | 37.8 | 33.25 | 15.1 | 9.1 | 101.5 | 81.5 | 31 | 12 | 36 | 4 | M16×2P | 34 | 39 |
| CLT-08 | 25 | 6-M12×1.75P | 18 | 25 | 46.3 | 41.9 | 22.1 | 10.1 | 127 | 106 | 35 | 14 | 36 | 5 | M20×2.5P | 38 | 42 |
| CLT-10 | 34 | 6-M16×2P | 25 | 30 | 51.4 | 47 | 30.6 | 9.6 | 158 | 133 | 40 | 16 | 36 | 5 | M20×2.5P | 45 | 46 |
| CLT-12 | 34 | 6-M16×2P | 20 | 30 | 60.7 | 55.45 | 48.6 | 12.6 | 163 | 133 | 50 | 18 | 36 | 5 | M20×2.5P | 50 | 54 |
| 型式 / 規格 | X | Y | 柱塞行程 (mm) | 爪行程(直徑) mm | 最高迴轉數 r.p.m (min-1) | 最大拉力 kgf (KN) | 最大靜夾持力 kgf (KN) | 最大設定 油壓壓力 kgf/cm2 (Mpa) | 淨重 (kg) | 搭配油壓缸型號 | 夾持範圍 |
| CL-05 | 62 | - | 15 | 6.4 | 5500 | 800 (7.8) | 2450 (24) | 25 (2.5) | 6 | L0815 | Ø8~Ø135 |
| CL-06 | 73 | - | 20 | 8.5 | 5000 | 1730 (17) | 5200 (51) | 25 (2.5) | 11.4 | L1020(L1020R) | Ø18~Ø165 |
| CL-08 | 95 | 104.8 | 21 | 8.8 | 4600 | 2440 (24) | 7440 (73) | 25 (2.5) | 21.9 | L1225(L1225R) | Ø12~Ø210 |
| CL-10 | 110 | 133.4 | 25 | 8.8 | 4000 | 2850 (28) | 10810 (106) | 29 (2.8) | 33.4 | L1225(L1225R) | Ø16~Ø254 |
| CL-12 | 129 | - | 30 | 10.5 | 3200 | 4080 (40) | 15500 (152) | 29 (2.8) | 58.5 | L1530(L1530R) | Ø18~Ø304 |
| CLT-06 | 73 | - | 20 | 8.5 | 5000 | 1220 (12) | 3460 (34) | 17 (1.7) | 11.1 | L1020 (L1020R) | Ø9~Ø165 |
| CLT-08 | 95 | 104.8 | 21 | 8.8 | 4000 | 1630 (16) | 4990 (49) | 16 (1.6) | 21.3 | L1225 (L1225R) | Ø12~Ø210 |
| CLT-10 | 110 | 133.4 | 25 | 8.8 | 3500 | 1930 (19) | 7140 (70) | 19 (1.9) | 32.6 | L1225 (L1225R) | Ø15~Ø254 |
| CLT-12 | 129 | - | 30 | 10.5 | 3000 | 2750 (27) | 10300 (101) | 20 (2.0) | 57.0 | L1530 (L1530R) | Ø20~Ø304 |
| Model | 2D pdf | 2D dwg | 3D step |
|---|---|---|---|
