品牌： 台湾千岛CHANDOX
爪数： 三爪
动力类型： 液压
特殊用途类型： 中空

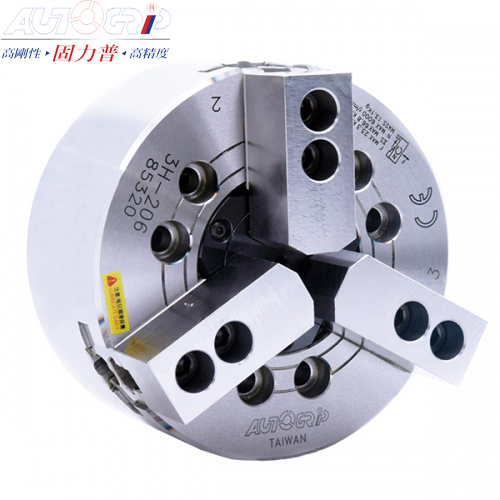

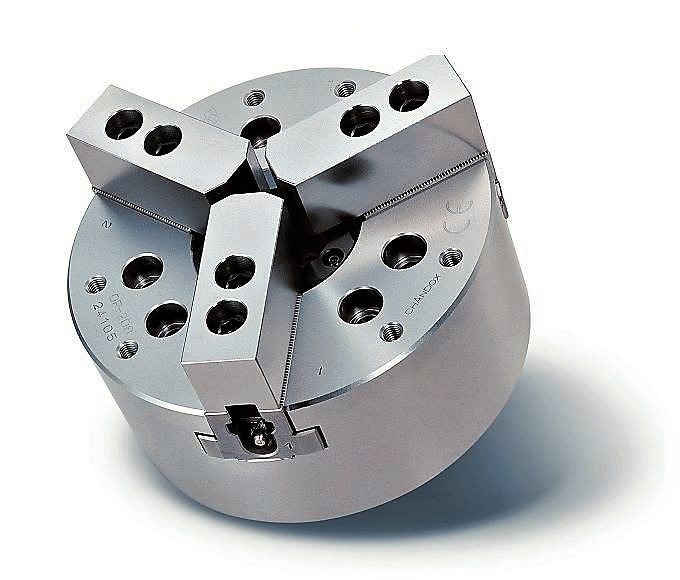

三爪高速中空油压夹头

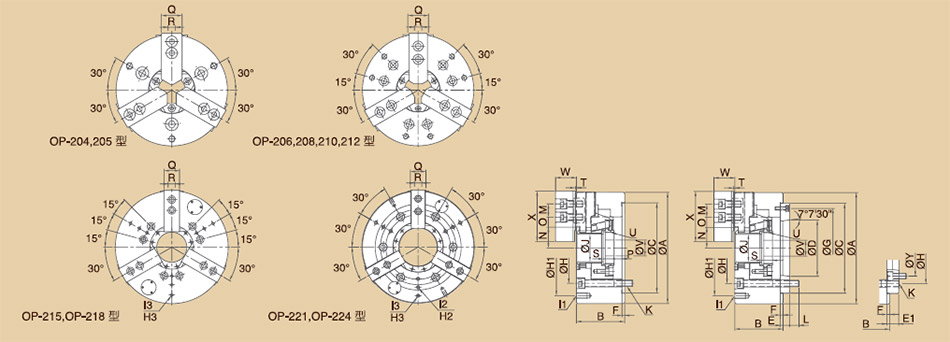

尺寸图
規格書
單位 / mm
| 型式 / 規格 | 主軸鼻端番號 | A | B | C (h6) | D | E | E1 | F | G | H | H1 | I1 | H2 | I2 | H3 |
| OP-204 | - | 110 | 59 | 85 | - | - | - | 4 | - | 70.6 | - | - | - | - | - |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OP-205 | A2-4 | 135 | 60 | 110 | 63.513 | 20 | - | 4 | 96 | 82.6 | PCDØ118 | 3-M8×1.25P | - | - | - |
| OP-206 | A2-5 | 169 | 81 | 140 | 82.563 | 15 | - | 5 | 116 | 104.8 | PCDØ145 | 6-M10×1.5P | - | - | - |
| OP-208 | A2-6(A2-5) | 210 | 91 | 170 | 106.375 | 17 | 23 | 5 | 150 | 133.4 | PCDØ180 | 6-M10×1.5P | - | - | - |
| OP-210 | A2-8(A2-6) | 254 | 100 | 220 | 139.719 | 18 | 28 | 5 | 190 | 171.4 | PCDØ225 | 6-M12×1.75P | - | - | - |
| OP-212 | A2-8 | 304 | 110 | 220 | 139.719 | 18 | - | 6 | 190 | 171.4 | PCDØ250 | 6-M12×1.75P | - | - | - |
| OP-215 | A2-11(A2-8) | 381 | 133 | 300 | 196.869 | 22 | 33 | 6 | 260 | 235 | - | - | PCDØ230 | 3-M12×1.75P | PCDØ300 |
| OP-218 | A2-11(A2-8) | 450 | 133 | 300 | 196.869 | 22 | 33 | 6 | 260 | 235 | PCDØ230 | 3-M12×1.75P | PCDØ300 | 3-M12×1.75P | PCDØ380 |
| OP-221 | A2-15(A2-11) | 530 | 140 | 380 | 285.775 | 27 | 41 | 6 | 330.2 | 330.2 | PCDØ300 | 3-M16×2P | PCDØ380 | 3-M16×2P | PCDØ460 |
| OP-224 | A2-20(A2-15) | 610 | 149 | 520 | 412.745 | 27 | 42 | 6 | 463.6 | 463.6 | PCDØ350 | 3-M16×2P | PCDØ450 | 3-M16×2P | PCDØ550 |
| OP-210BH | A2-8(A2-6) | 254 | 100 | 220 | 139.719 | 18 | 28 | 5 | 190 | 171.4 | - | - | PCDØ160 | 3-M12×1.75P | PCDØ220 |
| OP-212BH | A2-8 | 304 | 108 | 220 | 139.719 | 18 | - | 6 | 190 | 171.4 | - | - | PCDØ170 | 3-M16×2P | PCDØ260 |
| 型式 / 規格 | I3 | J | K | L | M | N max. | N min | O max. | O min. | P max. | P min. | Q | R | S | T | U | V | W | X |
| OP-204 | - | 26 | 3-M10×1.5P | - | 14 | 23 | 20.3 | 11.5 | 6.7 | 3.5 | -6.5 | 23 | 10 | 17.5 | 2 | M32×1.5P | 12 | 24 | 49.5 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OP-205 | - | 33 | 3-M10×1.5P | 15 | 14 | 26.2 | 23.5 | 19 | 6 | 1 | -9 | 25 | 10 | 20 | 2 | M40×1.5P | 12 | 31.5 | 62 |
| OP-206 | - | 45 | 6-M10×1.5P | 16 | 20 | 32.35 | 29.6 | 24 | 7 | 11 | -1 | 31 | 12 | 19 | 2 | M55×2P | 20 | 37.5 | 73 |
| OP-208 | - | 52 | 6-M12×1.75P | 18 | 25 | 39.1 | 35.4 | 30 | 11.6 | 14.5 | -1.5 | 35 | 14 | 20.5 | 2 | M60×2P | 30 | 39.5 | 95 |
| OP-210 | - | 75 | 6-M16×2P | 23 | 30 | 51.5 | 47.1 | 34 | 12 | 8.5 | -10.5 | 40 | 16 | 25 | 2 | M85×2P | 40 | 43 | 110 |
| OP-212 | - | 91 | 6-M16×2P | 25 | 30 | 61.6 | 56.3 | 46 | 12 | 8 | -15 | 50 | 21 | 28 | 2 | M100×2P | 50 | 51 | 129 |
| OP-215 | 3-M12×1.75P | 117.5 | 6-M20×2.5P | 28 | 43 | 82.3 | 77 | 46 | 13 | 7.5 | -16 | 62 | 22 | 42.5 | 5 | M130×2P | 48 | 66.5 | 165 |
| OP-218 | 3-M12×1.75P | 120 | 6-M20×2.5P | 28 | 43 | 83.8 | 78.5 | 78 | 18 | 7.5 | -16 | 62 | 22 | 42.5 | 5 | M130×2P | 48 | 66.5 | 165 |
| OP-221 | 3-M16×2P | 180 | 6-M24×3P | 35 | 60 | 119.6 | 114.3 | 63.3 | 21.3 | 10.5 | -13 | 65 | 25 | 42.5 | 5 | M195×2P | 80 | 73.5 | 180 |
| OP-224 | 3-M16×2P | 205 | 6-M24×3P | 36 | 60 | 134.4 | 128.4 | 87.3 | 21.3 | 13.5 | -11 | 65 | 25 | 41 | 5 | M220×3P | 80 | 73.5 | 180 |
| OP-210BH | 3-M12×1.75P | 78 | 6-M16×2P | 24 | 30 | 53.1 | 48.6 | 33.55 | 11.05 | 8.95 | -10.55 | 40 | 16 | 25 | 2 | M87×2P | 40 | 43 | 110 |
| OP-212BH | 3-M16×2P | 93 | 6-M16×2P | 27 | 30 | 63.7 | 58.7 | 45.55 | 12.55 | 8.65 | -13.05 | 50 | 21 | 26 | 2 | M103×2P | 50 | 51 | 129 |
| 型式 / 規格 | Y | 通孔直徑 (mm) | 柱塞行程 (mm) | 爪行程 [直徑] (mm) | 最高迴轉數 r.p.m. (min-1) | 最大拉力 kgf (KN) | 最大靜夾持力 kgf (KN) | 最大設定 油壓壓力 kgf/cm2 (Mpa) | 淨重 (kg) | 搭配油壓缸型號 | 夾持範圍 |
| OP-204 | - | 26 | 10 | 5.4 | 8000 | 1428(14) | 2850(28) | 24(2.3) | 3.8 | P0928 | Ø7~Ø110 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| OP-205 | - | 33 | 10 | 5.4 | 7000 | 1730(17) | 3570(35) | 29(2.8) | 6.1 | P1036 | Ø10~Ø135 |
| OP-206 | - | 45 | 12 | 5.5 | 6000 | 2140(21) | 5710(56) | 28(2.7) | 12.5 | P1246 | Ø13~Ø169 |
| OP-208 | 104.8 | 52 | 16 | 7.4 | 5000 | 3360(33) | 8360(82) | 26(2.5) | 21.9 | P1552 | Ø13~Ø210 |
| OP-210 | 133.4 | 75 | 19 | 8.8 | 4200 | 4280(42) | 11010(108) | 27(2.6) | 33.7 | P1875 | Ø30~Ø254 |
| OP-212 | - | 91 | 23 | 10.6 | 3300 | 5500(54) | 14380(141) | 27(2.6) | 55.3 | P2091 | Ø35~Ø304 |
| OP-215 | 171.4 | 117.5 | 23 | 10.6 | 2500 | 7140(70) | 18250(179) | 24.5(2.4) | 106.8 | P2511 | Ø35~Ø381 |
| OP-218 | 171.4 | 120 | 23 | 10.6 | 2000 | 7140(70) | 18250(179) | 24.5(2.4) | 152 | P2511 | Ø40~Ø450 |
| OP-221 | 235 | 180 | 23 | 10.6 | 1700 | 9080(89) | 23760(233) | 23.5(2.3) | 195.2 | P3420 | Ø115~Ø530 |
| OP-224 | 330.2 | 205 | 26 | 12 | 1400 | 9080(89) | 23760(233) | 23.5(2.3) | 269.4 | P3420 | Ø140~Ø610 |
| OP-210BH | 133.4 | 78 | 19.5 | 9 | 4200 | 4280(42) | 11010(108) | 27(2.6) | 36.7 | P1878 | Ø30~Ø254 |
| OP-212BH | - | 93 | 21 | 10 | 3300 | 5500(54) | 14380(141) | 28(2.7) | 57.4 | P2093 | Ø35~Ø304 |
| Model | 2D pdf | 2D dwg | 3D step |
|---|---|---|---|
| OP系列产品资料 |
|
|
|
| 千岛液压卡盘OP系列说明书 |
|
|
|
| 台湾千岛2021产品综合目录 |
|
|
|
