附逆止阀精短整合型行程控制回转油压缸 RE

品牌: 台湾佳贺固力普AUTOGRIP

动力分类: 中空

结构分类: 油缸回转缸

功能分类: 高速型

可替换商品

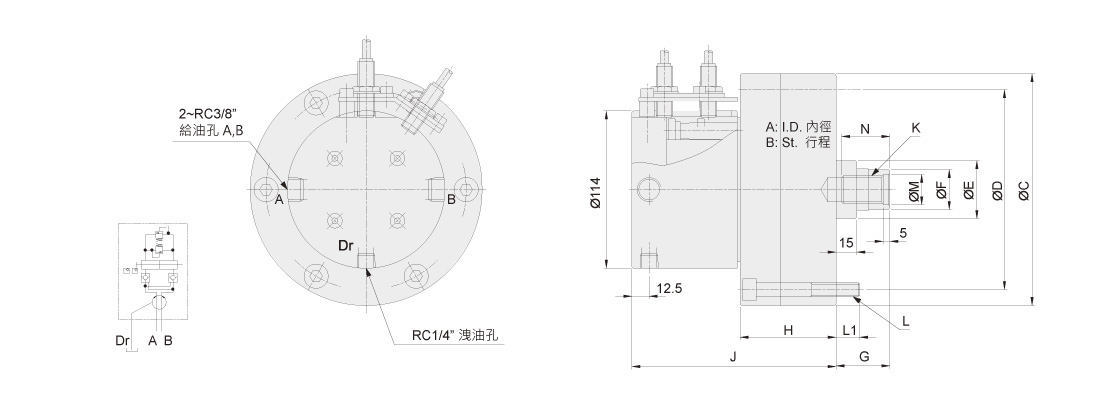

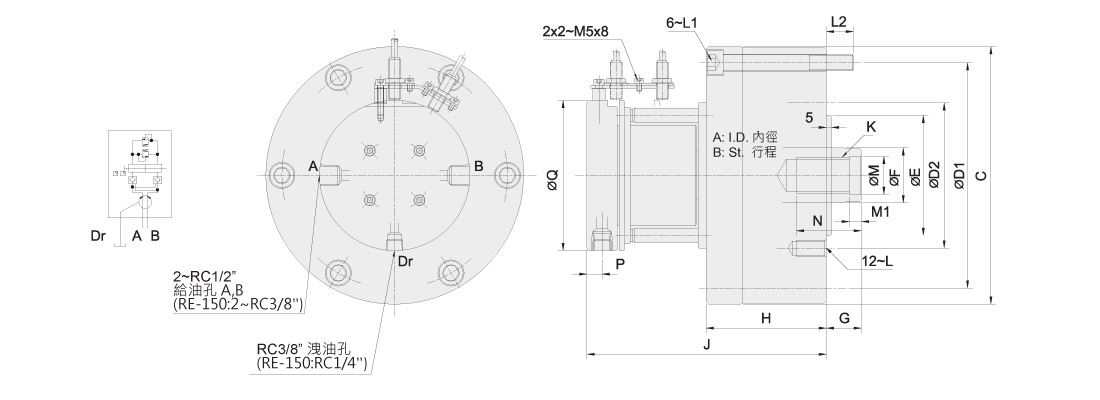

尺寸 规格 下载
型号ABC(h7)DD1D2EFG max.G min.HJKLL1L2M(H8)M1NPQ
RE-11011020145128--4229604066146M20x2.56~M8x7012-22-35--
RE-12012021168145--4229603969.5148M20x2.56~M10x7517-22-35--
RE-13013030168150--5033603079.5158M24x3.06~M10x8517-27-40--
RE-15015030205-18013011045603099177.5M30x3.5M12x24M12x10518.532105012.5114
RE-200K19535257-225145120557338120239M36x4.0M16x30M16x1302738126515150
RE-200L19550257-225170125658030135254M42x3.0M16x30M16x1452745126515150
RE-25024560307-275220160658525165280M42x3.0M20x35M16x1752845126515150



型号活塞面积-押侧
cm2
活塞面积-拉侧
cm2
行程
(mm)
最高回转数
min-1(r.p.m.)
最高使用压力
MPa(kgf/cm2)
I
kg‧m2
重量
(kg)
RE-11092.787.92060003.5(35)0.026.9
RE-120110.81062160004.0(40)0.038.8
RE-130130.4123.13060004.0(40)0.039.1
RE-150174.4160.83055004.0 (40)0.0614.9
RE-200K292.4274.93540004.0 (40)0.1929.1
RE-200L292.4265.45040005.0 (50)0.2130.4
RE-250465.2438.26020005.0 (50)0.4347.2


Model 2D pdf 2D dwg 3D step
RE-110
RE-120
RE-130
RE-150
RE-200K
RE-200L
RE-250
