品牌： 韩国瑞岩SEOAM
动力分类： 中空
结构分类： 气压回转缸
功能分类： 注气

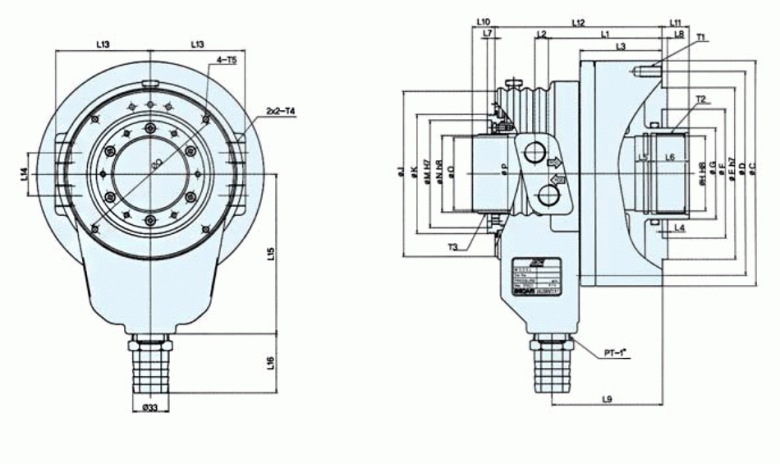

Item Model | C | D | E | F | G | H | J | K | L1 | L2 | L3 | L4 | L5 | L6 | L7 | L8 | L9 | L10 Max |
YSGH-08 | 210 | 190 | 160 | 120 | 85 | 70 | 154 | 111 | 105.2 | 12.7 | 76 | 5 | 15 | 35 | 7 | 5 | 102.5 | 46 |
YSGH-06 | 180 | 165 | 140 | 89 | 70 | 55 | 135 | 96 | 99 | 9 | 75.5 | 5.5 | 10 | 20 | 12.1 | 8 | 101.5 | 58 |
YSGH-12 | 263 | 225 | 200 | 145 | 120 | 106 | 202 | 148 | 148 | 14 | 108.5 | 5.5 | 15 | 30 | 7 | 5 | 155 | 55 |
Item Model | L10 Min | L11 Max | L12 | L13 | L14 | L15 | L16 | M | N | O | P | Q | T1 | T2 | T3 | T4 | T5 | |
YSGH-08 | 21 | 25 | 155 | 88 | 40 | 149 | 55 | 100 | 71.5 | 68 | 75 | 145 | 6-M10X18 | M75XP2.0 | M74XP1.5 | PT-1/2 | 4-M5X10 | |
YSGH-06 | 33 | 22 | 138.6 | 79 | 40 | 130 | 55 | 85 | 59.5 | 52 | 60 | 110 | 6-M10X17 | M60XP1.5 | M60XP1.5 | PT-1/2 | 4-M6X6 | |
YSGH-12 | 20 | 35 | 211 | 126 | 40 | 195 | 55 | 135 | 108 | 103 | 112 | 190 | 12-M12X20 | M111XP2.0 | M111XP2.0 | PT-1/2 | 4-M6X15 |
Spec Model | Order NO. | Max. Permissible speed r.p.m | weight(With standard soft jaws) | Gd moment of inertia | Cylinder dia | Piston stroke | Thru hole dia |
YSGH-08 | 2SGH08 | 5600 | 16.5 | 0.63(0.065) | 170 | 25 | 68 |
YSGH-06 | 2SGH06 | 6500 | 13.0 | 0.31(0.20) | 145 | 25 | 52 |
YSGH-12 | 2SGH12 | 3500 | 36 | 18.0(1.84) | 215 | 35 | 103 |
Spec Model | Piston surface area extend | Piston surface area retract | Max draw bar pull extend | Max draw bar pull retract | Max operation pressure | Total leakage | Matching chuck |
YSGH-08 | 179.6 | 166.2 | 66.8(6814) | 61.8(6306) | 40.8 | 4.2 | CGH-08 |
YSGH-06 | 131.6 | 122.6 | 33.1(3377) | 30.8(3147) | 40.8 | 3.9 | CGH-06 |
YSGH-12 | 262.3 | 245.9 | 85.0(8667.2) | 72.1(7357) | 40.8 | 6 | CGH-12 |
| Model | 2D pdf | 2D dwg | 3D step |
|---|---|---|---|
| YSGH-08 |
|
|
|
