品牌： 韩国瑞岩SEOAM
动力分类： 中空
结构分类： 气压回转缸
功能分类： 注气

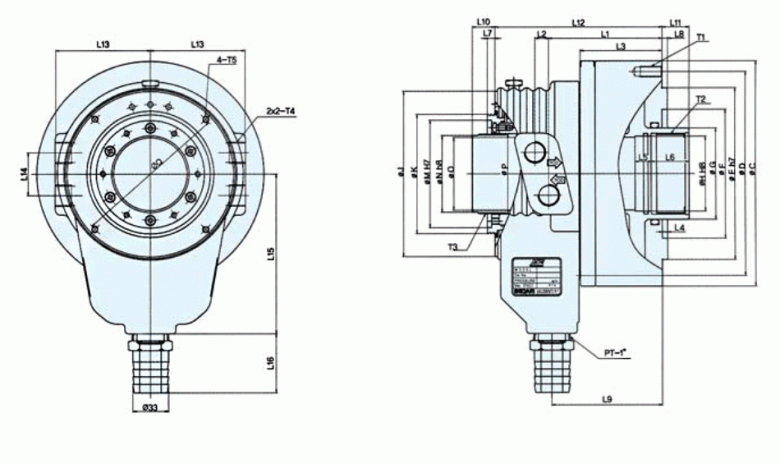

Item Model | C | D | E | F | G | H | J | K | L1 | L2 | L3 | L4 | L5 | L6 | L7 | L8 | L9 | L10 Max |
YSGHL-08 | 210 | 190 | 160 | 120 | 85 | 70 | 154 | 111 | 127.5 | 12.7 | 98.3 | 5 | 15 | 35 | 7 | 5 | 122.5 | 61 |
Item Model | L10 Min | L11 Max | L11 Min | L12 | L13 | L14 | L15 | L16 | M | N | O | P | Q | T1 | T2 | T3 | T4 | T5 |
YSGHL-08 | 21 | 35 | -5 | 175 | 88 | 40 | 149 | 55 | 100 | 71.5 | 68 | 75 | 145 | 6-M10X18 | M75XP1.5 | M74XP1.5 | PT-1/2 | 4-M5X10 |
Spec Model | Order NO. | Max. Permissible speed r.p.m | weight(With standard soft jaws) | Gd moment of inertia | Cylinder dia | Piston stroke | Thru hole dia |
YSGHL-08 | 2SGHL08 | 5600 | 17.5 | 0.68(0.070) | 170 | 40 | 68 |
Spec Model | Piston surface area extend | Piston surface area retract | Max draw bar pull extend | Max draw bar pull retract | Max operation pressure | Total leakage | Matching chuck |
YSGHL-08 | 179.6 | 166.2 | 66.8(6814) | 61.8(6306) | 40.8 | 4.2 | CGH-08 |
| Model | 2D pdf | 2D dwg | 3D step |
|---|---|---|---|
| YSGHL-08 |
|
|
|
