品牌： 韩国瑞岩SEOAM
动力分类： 中空
结构分类： 气压回转缸
功能分类： 注气

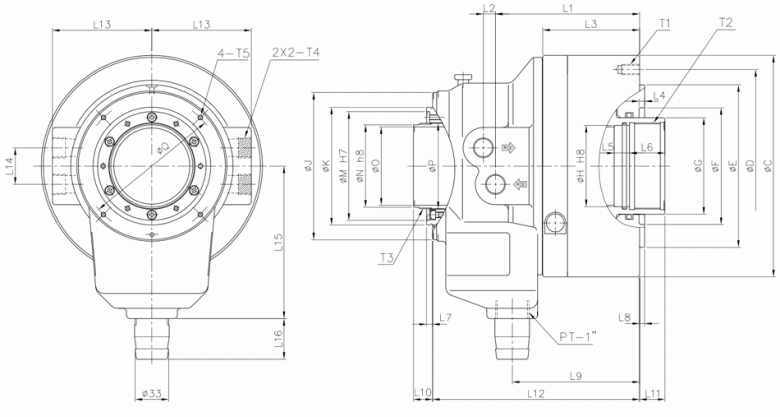

Item Model | C | D | E | F | G | H | J | K | L1 | L2 | L3 | L4 | L5 | L6 | L7 | L8 | L9 | L10 Max |
YGHL-10 | 223 | 190 | 160 | 125 | 100 | 86 | 167 | 121.2 | 164.5 | 14 | 110.5 | 5.5 | 15 | 35 | 6 | 5 | 143.5 | 59 |
Item Model | L10 Min | L11 Max | L12 | L13 | L14 | L15 | L16 | M | N | O | P | Q | T1 | T2 | T3 | T4 | T5 | |
YGHL-10 | 19 | 40 | 229 | 107 | 36 | 166 | 40 | 112 | 87 | 82 | 90 | 154 | 12-M10X18 | M90XP2.0 | M89XP2.0 | PT-1/2 | M6X10 |
Spec Model | Order NO. | Max. Permissible speed r.p.m | weight(With standard soft jaws) | Gd moment of inertia | Cylinder dia | Piston stroke | Thru hole dia |
YGHL-10 | 2GHL10 | 4500 | 29.2 | 4.80(0.49) | 185 | 40 | 82 |
Spec Model | Piston surface area extend | Piston surface area retract | Max draw bar pull extend | Max draw bar pull retract | Max operation pressure | Total leakage | Matching chuck |
YGHL-10 | 205.1 | 190.2 | 77.2(7866) | 71.6(7295) | 40.8 | 4.5 | CGH-10 |
| Model | 2D pdf | 2D dwg | 3D step |
|---|---|---|---|
| YGHL-10 |
|
|
|
