品牌： 韩国瑞岩SEOAM
爪数： 单爪
动力类型： 液压
特殊用途类型： 中空

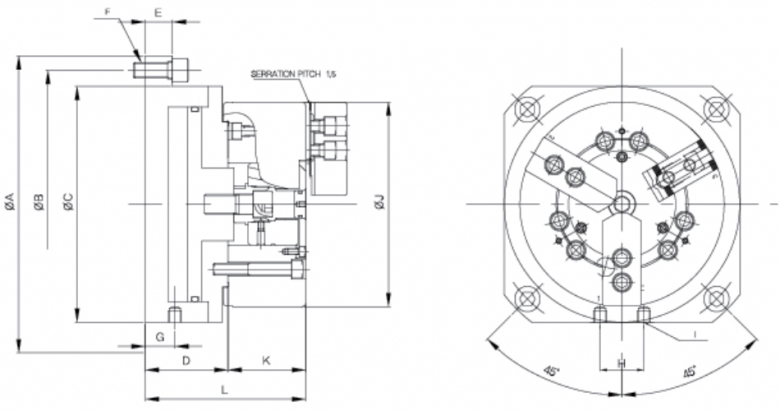

Item Model | A | B | C | D | E | F |
SM-FXA 06 | 305 | 275 | 242 | 85 | 28 | 4-M16 |
SM-FXA 08 | 305 | 275 | 242 | 85 | 28 | 4-M16 |
Item Model | G | H | I | J | K | L |
SM-FXA 06 | 30.5 | 30.5 | 2-PT1/4 | 165 | 69 | 154 |
SM-FXA 08 | 30.5 | 30.5 | 2-PT1/4 | 210 | 80 | 165 |
Spec Model | Jaw stroke(Diameter) mm | Gripping Max | Gripping Min | Max. static gripping force KN(kgf) | weight(With standard soft jaws) |
SM-FXA 06 | 6.9 | 165 | 20 | 41.1(4,200) | 38 |
SM-FXA 08 | 7 | 210 | 18 | 51(5200) | 48 |
Spec Model | Piston stroke | Max operation pressure | Matching chuck | effective pisuton area(extend) | effective pisuton area(retract) |
SM-FXA 06 | 15 | 5.5 | CAS6 | 263 | 263 |
SM-FXA 08 | 20 | 7 | CAS8 | 263 | 263 |
| Model | 2D pdf | 2D dwg | 3D step |
|---|
