品牌： 韩国瑞岩SEOAM
爪数： 三爪
动力类型： 液压
特殊用途类型： 中空

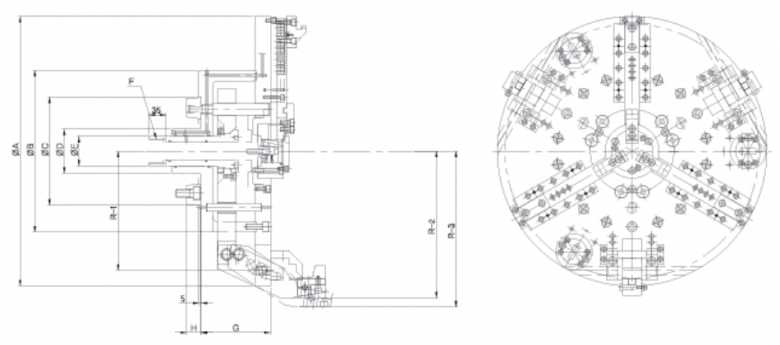

Item Model | A | B | D | E | F | G |
SM-ALW 20 | 500 | 300 | 90 | 60 | M50X92.0 | 141 |
SM-ALW 22 | 550 | 330 | 90 | 60 | M50XP2.0 | 141 |
SM-ALW 26 | 600 | 380 | 90 | 60 | M50X92.0 | 141 |
SM-ALW 30 | 660 | 380 | 90 | 60 | M50XP2.0 | 141 |
Item Model | H | Cro | N1 | GemXL-Size R-2(CL) | GemXL-Size R-3(UCL) | |
SM-ALW 20 | 141 | 220 | 218.3 | 141 | 30 | |
SM-ALW 22 | 141 | 2520 | 243.7 | 141 | 30 | |
SM-ALW 26 | 141 | 300 | 269.1 | 141 | 37 | |
SM-ALW 30 | 141 | 300 | 294.5 | 141 | 37 |
Spec Model | Spindle nose NO. | Jaw stroke(Diameter) mm | Plunger stroke mm | Max. permissible input force KN(kgf) | Max. static gripping force KN(kgf) | Max. Permissible speed r.p.m |
SM-ALW 20 | A2-8 | 27 | 35 | 29.4(3000) | 55(5610) | 2,800 |
SM-ALW 22 | A2-8 | 27 | 35 | 29.4(3000) | 73(7446) | 2,600 |
SM-ALW 26 | A2-11 | 27 | 35 | 29.4(3000) | 86(8772) | 2,200 |
SM-ALW 30 | A2-11 | 27 | 35 | 29.4(3000) | 86(8772) | 1,800 |
Spec Model | weight(With standard soft jaws) | matching cylinder | GD2 | Wheel Size Range(Max) | Wheel Size Range(Min) | |
SM-ALW 20 | 120 | YDP125 | 30.0(3.06) | 16 | 12 | |
SM-ALW 22 | 140 | YDP125 | 40.0(4.1) | 18 | 13 | |
SM-ALW 26 | 160 | YDP125 | 45.0(4.59) | 20 | 14 | |
SM-ALW 30 | 240 | YDP140 | 100.0(10.2) | 22 | 16 |
| Model | 2D pdf | 2D dwg | 3D step |
|---|
