品牌： 韩国瑞岩SEOAM
爪数： 单爪
动力类型： 气动
特殊用途类型： 中空

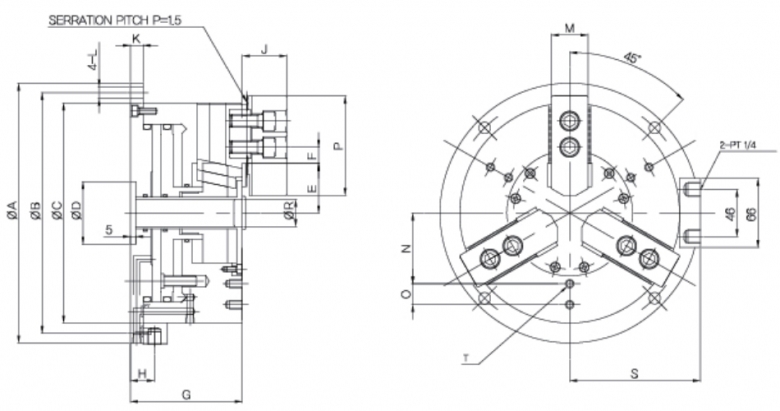

Item Model | A | B | C | D | G | H | J | K | L | M |
SM-FXB 04 | 147 | 130 | 110 | 35 | 21 | 21 | 29 | 10 | 9 | 25 |
SM-FXB 06 | 203 | 185 | 165 | 50 | 23 | 23 | 39 | 12 | 9 | 35 |
SM-FXB 08 | 248 | 230 | 210 | 60 | 23 | 23 | 44 | 12 | 11 | 40 |
SM-FXB 10 | 300 | 280 | 254 | 80 | 25 | 25 | 49 | 14 | 13 | 45 |
Item Model | N | O | P | R | S | T | E MAX | E MIN | F MAX | F MIN |
SM-FXB 04 | - | - | 54 | 4 | 75 | - | 27 | 24.25 | 9 | 6 |
SM-FXB 06 | 55 | 20 | 66 | 20 | 102.5 | M6-10 | 27 | 24.25 | 9 | 6 |
SM-FXB 08 | 67 | 25 | 85.5 | 30 | 125 | M8-13 | 39 | 36.25 | 16.5 | 10.5 |
SM-FXB 10 | 80 | 30 | 108 | 44 | 147 | M8-13 | 59 | 55.5 | 27 | 12 |
Spec Model | Jaw stroke(Diameter) mm | Gripping Max | Gripping Min | Max. static gripping force KN(kgf) | weight(With standard soft jaws) |
SM-FXB 04 | 5.5 | 110 | 8 | 7.8(800) | 6 |
SM-FXB 06 | 5.5 | 110 | 8 | 20.6(2100) | 15 |
SM-FXB 08 | 7 | 210 | 38 | 33.3(3400) | 26 |
SM-FXB 10 | 7 | 256 | 38 | 51(5200) | 40 |
Spec Model | Piston stroke | Max operation pressure | effective pisuton area(extend) | effective pisuton area(retract) | |
SM-FXB 04 | 13 | 7 | 60.1 | 57.7 | |
SM-FXB 06 | 13 | 7 | 146.9 | 140.5 | |
SM-FXB 08 | 16.5 | 7 | 245.2 | 236.7 | |
SM-FXB 10 | 16.5 | 7 | 375.8 | 360.6 |
| Model | 2D pdf | 2D dwg | 3D step |
|---|
