品牌： 韩国瑞岩SEOAM
动力分类： 中空
结构分类： 气压回转缸
功能分类： 注气

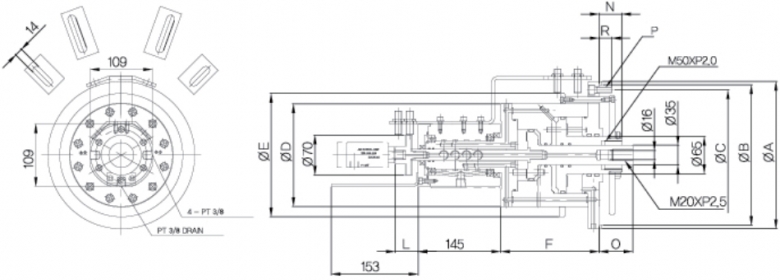

Item Model | A | C | D | E | F | N Max | N Min |
SM-YDP 125 | 258 | 228 | 180 | 216 | 173 | 67 | 32 |
SM-YDP 140 | 273 | 243 | 195 | 231 | 173 | 67 | 32 |
SM-YDP 160 | 293 | 263 | 215 | 251 | 188 | 85 | 35 |
Item Model | O Max | O Min | P | Bro | L MAX | L MIN | |
SM-YDP 125 | 62 | 42 | 6-M10 | 246 | 57 | 37 | |
SM-YDP 140 | 62 | 42 | 6-M10 | 261 | 57 | 37 | |
SM-YDP 160 | 65 | 45 | 6-M10 | 281 | 57 | 37 |
Spec Model | Max. Permissible speed r.p.m | weight(With standard soft jaws) | Piston surface area extend | Piston surface area retract | Max operation pressure |
SM-YDP 125 | 5000 | 43 | 113/89 | 47/40 | 35 |
SM-YDP 140 | 4500 | 46 | 144/120 | 47/40 | 35 |
SM-YDP 160 | 4000 | 52 | 191/167 | 47/40 | 35 |
Spec Model | GD2 | Cylinder Dia Piston 1 | Cylinder Dia Piston 2 | Piston Stroke Piston 1 | Piston Stroke Piston 2 |
SM-YDP 125 | 1.27(0.13) | 125 | 80 | 35 | 20 |
SM-YDP 140 | 1.76(0.18) | 140 | 80 | 35 | 20 |
SM-YDP 160 | 2.45(0.25) | 160 | 80 | 50 | 20 |
| Model | 2D pdf | 2D dwg | 3D step |
|---|
