品牌： 韩国瑞岩SEOAM
动力分类： 中实
结构分类： 油缸回转缸
功能分类： 注水

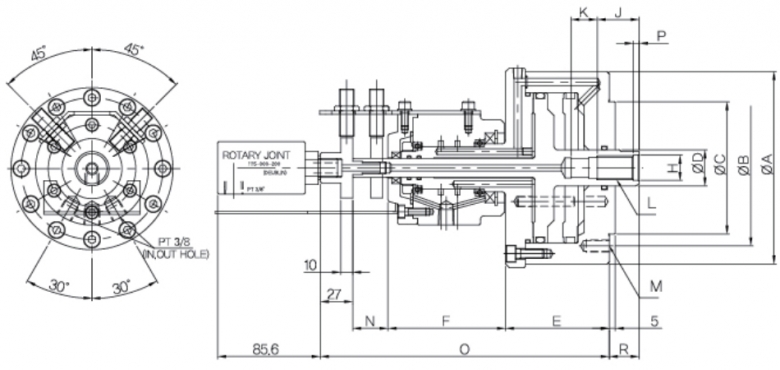

Item Model | A | B | D | E | F | H | J | K | L |
SM-YTR 100 | 135 | 100 | 30 | 81.5 | 98 | 21 | 30 | 22 | M20XP2.5 |
SM-YTR 125 | 160 | 130 | 30 | 86.5 | 98 | 21 | 30 | 22 | M20XP2.5 |
SM-YTR 140 | 175 | 130 | 35 | 106.5 | 98 | 25 | 40 | 22 | M24XP3.0 |
SM-YTR 200 | 245 | 145 | 55 | 120.5 | 98 | 37 | 70 | - | M36XP4.0 |
SM-YTR 250 | 305 | 220 | 65 | 170 | 98 | 44 | 80 | - | M42XP3.0 |
Item Model | M | N Max | N Min | O Max | O Min | P | R Max | R Min | Cro |
SM-YTR 100 | M8,DP18 | 24.5 | 4.5 | 231 | 211 | 5 | 45 | 25 | 80 |
SM-YTR 125 | M10,DP20 | 29.5 | 4.5 | 241 | 216 | 5 | 50 | 25 | 110 |
SM-YTR 140 | M10,DP20 | 39.5 | 4.5 | 271 | 236 | 5 | 60 | 25 | 110 |
SM-YTR 200 | M16,DP29 | 39.5 | 4.5 | 285 | 250 | 15 | 60 | 25 | 120 |
SM-YTR 250 | M20,DP35 | 64.5 | 4.5 | 359.5 | 299.5 | 20 | 85 | 25 | 160 |
Spec Model | Max. Permissible speed r.p.m | weight(With standard soft jaws) | Gd moment of inertia | Cylinder dia | Piston stroke |
SM-YTR 100 | 5500 | 6.3 | 0.49(0.050) | 100 | 20 |
SM-YTR 125 | 5000 | 8.4 | 0.88(0.09) | 125 | 25 |
SM-YTR 140 | 4500 | 11.3 | 1.57(0.16) | 140 | 35 |
SM-YTR 200 | 4000 | 22.3 | 4.51(0.46) | 200 | 35 |
SM-YTR 250 | 3500 | 25.2 | 8.33(0.85) | 250 | 60 |
Spec Model | Piston surface area extend | Piston surface area retract | Max operation pressure | Total leakage | |
SM-YTR 100 | 75.4 | 70.5 | 35 | 1 | |
SM-YTR 125 | 119.5 | 112.4 | 35 | 1 | |
SM-YTR 140 | 150.8 | 141.2 | 35 | 1 | |
SM-YTR 200 | 309.4 | 293.4 | 35 | 1 | |
SM-YTR 250 | 515 | 482 | 35 | 1 |
