品牌： 韩国瑞岩SEOAM
爪数： 单爪
动力类型： 液压
特殊用途类型： 中空

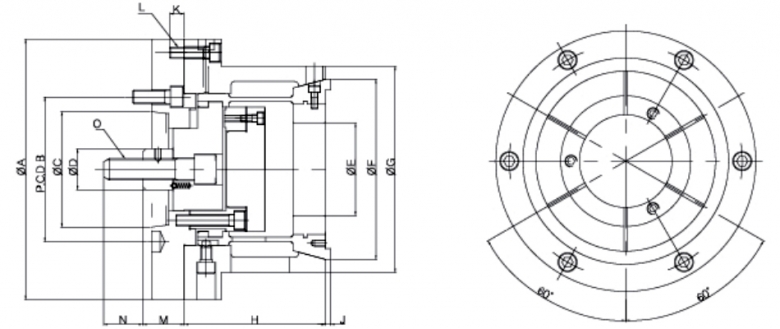

Item Model | A | B | C | D | F | G | H | K | L |
SM-ODC 06 | 165 | 104.8 | 82.563 | 32 | 100 | 130 | 115 | 15 | 6-M12 |
SM-ODC 08 | 210 | 133.4 | 106.375 | 38 | 148 | 185 | 125 | 17 | 6-M14 |
SM-ODC 10 | 254 | 171.4 | 139.719 | 50 | 182 | 250 | 145 | 20 | 6-M16 |
SM-ODC 12 | 304 | 171.4 | 139.719 | 52 | 230 | 390 | 170 | 20 | 6-M16 |
Item Model | N | O | E MAX | E MIN | J MAX | J MIN | M MAX | M MIN | |
SM-ODC 06 | 36 | M16 | 50 | 15 | 7 | 3 | 42 | 38 | |
SM-ODC 08 | 36 | M20 | 90 | 40 | 7 | 3 | 42 | 38 | |
SM-ODC 10 | 46 | M24 | 130 | 80 | 7 | 3 | 52 | 48 | |
SM-ODC 12 | 55 | M27 | 180 | 100 | 7 | 3 | 62 | 58 |
Spec Model | Gripping Max | Gripping Min | Max. permissible input force KN(kgf) | Max. static gripping force KN(kgf) | Max. Permissible speed r.p.m |
SM-ODC 06 | 50 | 15 | 14.7(1500) | 27.45(2800) | 4500 |
SM-ODC 08 | 80 | 40 | 24.5(2500) | 45.10(4600) | 4000 |
SM-ODC 10 | 130 | 80 | 34.31(3500) | 63.73(6500) | 3300 |
SM-ODC 12 | 180 | 100 | 39.22(4000) | 73.53(7500) | 2500 |
Spec Model | weight(With standard soft jaws) | matching cylinder | GD2 | Collet Range | Cylinder Stroke |
SM-ODC 06 | 11 | YAS-100 | 1.08(0.11) | 1.4 | 4 |
SM-ODC 08 | 23 | YAS-125 | 4.31(0.44) | 1.4 | 4 |
SM-ODC 10 | 49 | YAS-125 | 17.25(1.76) | 1.4 | 4 |
SM-ODC 12 | 67 | YAS-140 | 30.38(3.1) | 1.4 | 4 |
| Model | 2D pdf | 2D dwg | 3D step |
|---|
