内径用涨套卡盘

品牌： 韩国瑞岩SEOAM

爪数： 单爪

动力类型： 液压

特殊用途类型： 中空

可替换商品

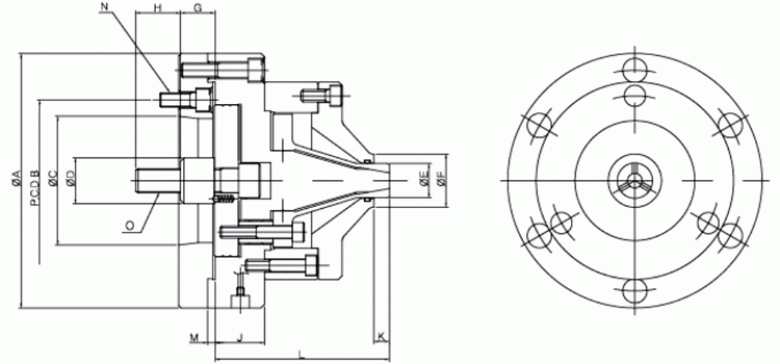

尺寸 规格 下载

Item

Model

A

B

C

D

F

J

K

L

SM-IDC 06

160

104.8

82.565

35

E+24

35

15

115

SM-IDC 08

200

133.4

106.375

38

E+24

35

20

135

SM-IDC 10

250

171.4

139.72

50

E+24

35

35

180

SM-IDC 12

300

171.4

139.72

55

E+24

45

40

220

SM-IDC 15

380

235

196.865

65

E+24

50

45

250

Item

Model

M

N

O

E MAX

E MIN

G MAX

G MIN


SM-IDC 06

6

M10

M16

60

25

27

25


SM-IDC 08

6

M12

M20

90

40

33

30


SM-IDC 10

6

M16

M24

130

90

33

30


SM-IDC 12

8

M16

M24

180

130

40

36


SM-IDC 15

8

M20

M27

230

180

40

36



Spec

Model

Gripping Max

Gripping Min

Max. permissible input force KN(kgf)

Max. static gripping force KN(kgf)

Max. Permissible speed r.p.m

SM-IDC 06

40

14

14.7(1500)

39.2(4000)

4500

SM-IDC 08

90

40

24.5(2600)

68.7(7000)

4000

SM-IDC 10

130

90

39.2(4000)

117.8(12000)

3300

SM-IDC 12

180

130

47.1(4800)

147.2(15000)

2500

SM-IDC 15

-

-

-

-

-

Spec

Model

weight(With standard soft jaws)

matching cylinder

GD2

Collet Range

Cylinder Stroke

SM-IDC 06

6.8

YAS-100

0.59(0.060)

1.4

4

SM-IDC 08

13.3

YAS-125

1.86(0.19)

1.4

4

SM-IDC 10

34

YAS-125

6.96(0.71)

1.4

4

SM-IDC 12

55

YAS-140

19.6(2.00)

1.4

4

SM-IDC 15

-

-

-

-

-


Model 2D pdf 2D dwg 3D step
