品牌： 韩国瑞岩SEOAM
爪数： 四爪
动力类型： 手动
特殊用途类型： 中空

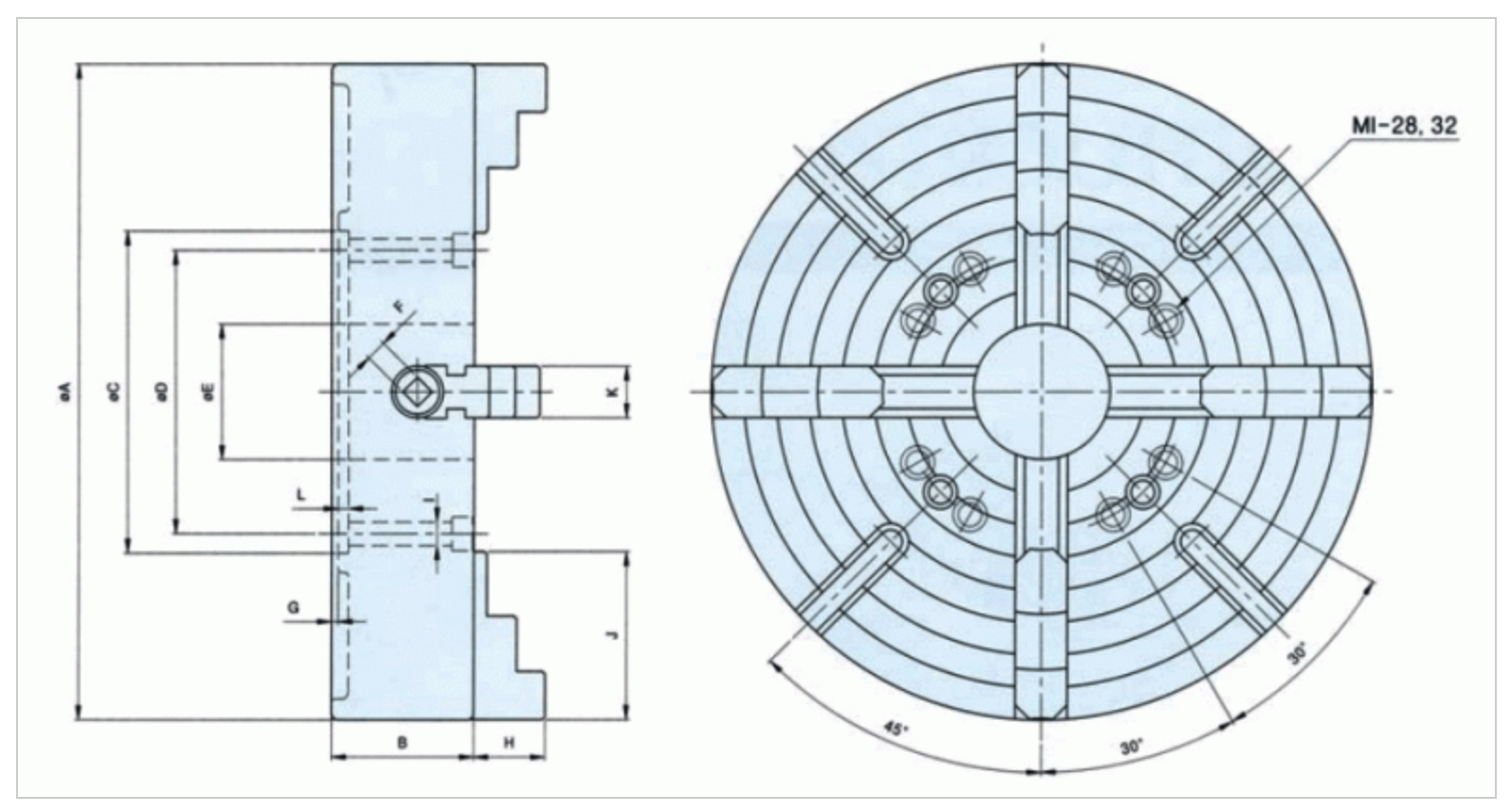

Item Model | A | B | C | D | E | F |
MI-6 | 150 | 60 | 130 | 115 | 40 | 8 |
MI-8 | 200 | 75 | 175 | 155 | 50 | 10 |
MI-10 | 250 | 80 | 150 | 125 | 55 | 10 |
MI-12 | 300 | 90 | 170 | 140 | 65 | 12 |
MI-14 | 350 | 90 | 190 | 160 | 75 | 12 |
MI-16 | 400 | 100 | 210 | 180 | 90 | 14 |
MI-18 | 450 | 105 | 230 | 200 | 100 | 14 |
MI-20 | 500 | 110 | 250 | 220 | 110 | 14 |
MI-24 | 600 | 120 | 300 | 260 | 120 | 15 |
MI-28 | 710 | 120 | 350 | 300 | 140 | 14 |
MI-32 | 913 | 120 | 400 | 350 | 140 | 14 |
MI-40 | 1000 | 175 | 460 | 510 | 190 | 17 |
MI-50 | 1300 | 200 | 520 | 463.6 | 180 | 26 |
MI-63 | 1600 | 220 | 720 | 647.6 | 310 | 22 |
MU-80 | 2000 | 260 | 350 | 1120 | 210 | |
Item Model | G | H | I | J | K | L |
MI-6 | - | 25 | 4-M10 | 55 | 25 | 5 |
MI-8 | - | 30 | 4-M12 | 75 | 30 | 6 |
MI-10 | 2.5 | 35 | 4-M12 | 90 | 30 | 6 |
MI-12 | 3 | 40 | 4-M12 | 4 | 35 | 6 |
MI-14 | 3 | 45 | 4-M12 | 110 | 35 | 8 |
MI-16 | 5 | 50 | 4-M16 | 120 | 40 | 8 |
MI-18 | 5 | 55 | 4-M16 | 130 | 40 | 8 |
MI-20 | 5 | 60 | 4-M16 | 140 | 45 | 8 |
MI-24 | 10 | 70 | 4-M20 | 160 | 50 | 10 |
MI-28 | 8 | 70 | 8-M20X2.5 | 180 | 50 | 12 |
MI-32 | 8 | 70 | 8-M20X2.5 | 180 | 50 | 12 |
MI-40 | 1 | 88 | 6-M24X3.0 | 196 | 55 | 14 |
MI-50 | - | 127 | 8-M24X3.0 | 270 | 80 | 6 |
MI-63 | - | 127 | 8-M30X3.5 | 270 | 80 | 6 |
MU-80 | 18 | 195 | 276 | 80 | 17 |
Spec Model | Order NO. | Thru-hole(Diameter) mm | Max. Permissible speed r.p.m | weight(With standard soft jaws) |
MI-6 | 706 | 40 | 1600 | 6.1 |
MI-8 | 708 | 50 | 1600 | 14.8 |
MI-10 | 710 | 55 | 1600 | 21 |
MI-12 | 712 | 65 | 1400 | 29.5 |
MI-14 | 714 | 75 | 1400 | 40 |
MI-16 | 716 | 90 | 1200 | 56.5 |
MI-18 | 718 | 100 | 1200 | 70 |
MI-20 | 720 | 110 | 900 | 90 |
MI-24 | 724 | 120 | 900 | 150 |
MI-28 | 728 | 140 | 700 | 220 |
MI-32 | 732 | 140 | 600 | 270 |
MI-40 | 740 | 190 | 500 | 550 |
MI-50 | 750 | 180 | 320 | 1330 |
MI-63 | 763 | 310 | 240 | 2290 |
MU-80 | MU80 | 210 | ||
Spec Model | Chuck size | Gripping force | Gripping dia external Max | |
MI-6 | 150 | 600 | 140 | |
MI-8 | 200 | 1000 | 185 | |
MI-10 | 250 | 1400 | 220 | |
MI-12 | 300 | 1600 | 265 | |
MI-14 | 350 | 1700 | 310 | |
MI-16 | 400 | 2000 | 360 | |
MI-18 | 450 | 2000 | 405 | |
MI-20 | 500 | 2200 | 450 | |
MI-24 | 600 | 2300 | 550 | |
MI-28 | 710 | 2350 | 650 | |
MI-32 | 813 | 2400 | 755 | |
MI-40 | 1000 | 3100 | 910 | |
MI-50 | 1300 | 4100 | 1150 | |
MI-63 | 1600 | 4100 | 1440 | |
MU-80 | 2000 | 1830 |
| Model | 2D pdf | 2D dwg | 3D step |
|---|---|---|---|
| MU-80 |
|
|
|
