品牌： 韩国瑞岩SEOAM
爪数： 单爪
动力类型： 手动
特殊用途类型： 中空

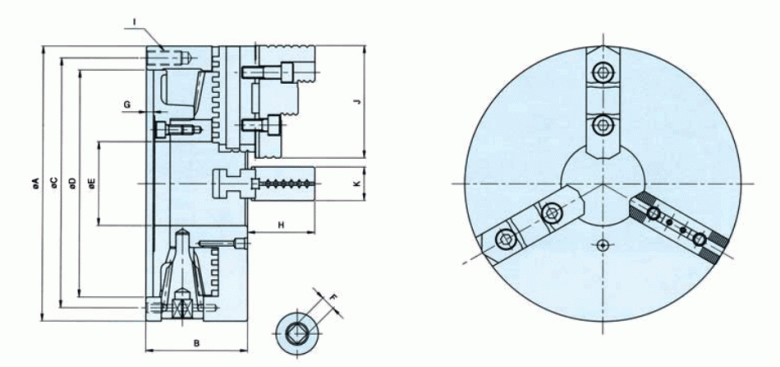

Item Model | A | B | C | D | E | F |
MSU-7 | 190 | 76 | 172 | 155 | 55 | 11 |
MSU-9 | 232 | 84 | 210 | 190 | 70 | 12 |
MSU-10 | 273 | 87 | 250 | 230 | 85 | 12 |
MSU-12 | 310 | 96 | 285 | 260 | 96 | 14 |
MSU-20 | 500 | 143 | 235 | 300 | 177 | 19 |
Item Model | G | H | I | J | K | |
MSU-7 | 5 | 38.3 | 3-M10 | 88 | 28 | |
MSU-9 | 6 | 48.9 | 3-M12 | 100 | 31.5 | |
MSU-10 | 6 | 52.2 | 3-M12 | 110 | 35 | |
MSU-12 | 7 | 52.8 | 3-M12 | 125 | 40 | |
MSU-20 | 18 | 90 | 6-M20 | 161 | 55 |
Spec Model | Order NO. | Thru-hole(Diameter) mm | Max. Permissible speed r.p.m | weight(With standard soft jaws) | Chuck size |
MSU-7 | 01507E | 55 | 3500 | 13 | 190 |
MSU-9 | 01509E | 70 | 2900 | 22 | 232 |
MSU-10 | 01510E | 85 | 2500 | 29 | 273 |
MSU-12 | 01512E | 96 | 3200 | 38 | 310 |
MSU-20 | 01520E | 850 | 156 | 500 | |
Spec Model | Gripping force | Gripping dia external Max | Gripping dia external Min | Gripping dia internal Max | Gripping dia internal Min |
MSU-7 | 3600 | 180 | 4 | 62 | 170 |
MSU-9 | 3900 | 220 | 5 | 70 | 210 |
MSU-10 | 4500 | 260 | 5 | 80 | 250 |
MSU-12 | 5400 | 300 | 10 | 90 | 290 |
MSU-20 | 6650 | 461 | 45 | 155 | 453 |
| Model | 2D pdf | 2D dwg | 3D step |
|---|---|---|---|
| MSU-10 |
|
|
|
| MSU-12 |
|
|
|
| MSU-7 |
|
|
|
| MSU-9 |
|
|
|
