品牌： 韩国瑞岩SEOAM
爪数： 三爪
动力类型： 手动
特殊用途类型： 中空

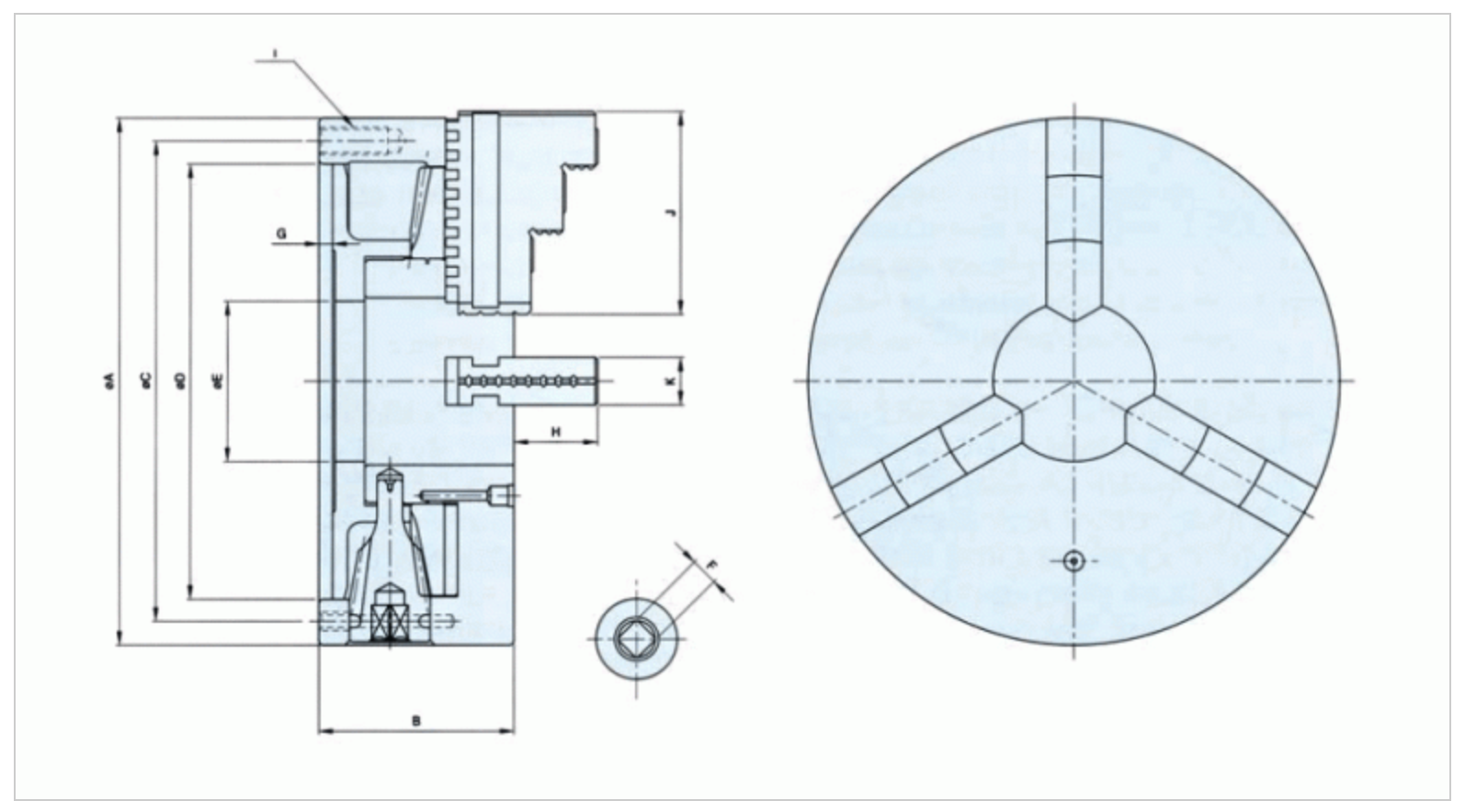

Item Model | A | B | C | D | E | F |
MS-3 | 85 | 45 | 73 | 60 | 16 | 7 |
MS-4 | 110 | 58 | 95 | 80 | 24 | 8 |
MS-5 | 130 | 60 | 115 | 100 | 32 | 8 |
MS-6 | 165 | 65 | 147 | 130 | 45 | 10 |
MS-7 | 190 | 75 | 172 | 155 | 55 | 11 |
MS-9 | 230 | 84 | 210 | 190 | 70 | 12 |
MS-10 | 273 | 86 | 250 | 230 | 85 | 12 |
MS-12 | 310 | 96 | 285 | 260 | 96 | 14 |
MS-14 | 355 | 110 | 328 | 300 | 100 | 14 |
Item Model | G | H | I | J | K | |
MS-3 | 3.5 | 14.6 | 3-M6 | 35 | 11 | |
MS-4 | 4.5 | 17.6 | 3-M8 | 42 | 14 | |
MS-5 | 4.5 | 20 | 3-M8 | 50 | 16 | |
MS-6 | 5 | 25 | 3-M10 | 65 | 19 | |
MS-7 | 5 | 30 | 3-M10 | 75 | 22 | |
MS-9 | 6 | 35 | 3-M12 | 85 | 24 | |
MS-10 | 6 | 40 | 3-M12 | 98 | 29 | |
MS-12 | 7 | 45 | 3-M12 | 110 | 30 | |
MS-14 | 7 | 63 | 6-M12 | 133 | 35 | |
Spec Model | Order NO. | Thru-hole(Diameter) mm | Max. Permissible speed r.p.m | weight(With standard soft jaws) | Chuck size | |
MS-3 | 00103E | 16 | 2500 | 1.5 | 85 | |
MS-4 | 00104E | 24 | 2500 | 1.5 | 110 | |
MS-5 | 00105E | 32 | 2500 | 4.5 | 130 | |
MS-6 | 00106E | 45 | 4000 | 7.5 | 165 | |
MS-7 | 00107E | 55 | 3500 | 11.5 | 190 | |
MS-9 | 00109E | 70 | 2900 | 19 | 230 | |
MS-10 | 00110E | 85 | 2500 | 26 | 273 | |
MS-12 | 00112E | 96 | 2200 | 38 | 310 | |
MS-14 | 00114E | 100 | 1500 | 54 | 355 | |
Spec Model | Gripping force | Gripping dia external Max | Gripping dia external Min | Gripping dia internal Max | Gripping dia internal Min | |
MS-3 | 900 | 70 | 2 | 64 | 24 | |
MS-4 | 1200 | 95 | 3 | 84 | 29 | |
MS-5 | 1500 | 110 | 3 | 100 | 33 | |
MS-6 | 3000 | 160 | 3 | 150 | 48 | |
MS-7 | 3600 | 180 | 4 | 170 | 56 | |
MS-9 | 3900 | 220 | 5 | 210 | 62 | |
MS-10 | 4500 | 260 | 5 | 250 | 70 | |
MS-12 | 5400 | 300 | 10 | 290 | 86 | |
MS-14 | 4050 | 315 | 25 | 290 | 107 | |
| Model | 2D pdf | 2D dwg | 3D step |
|---|---|---|---|
| MS-10 |
|
|
|
| MS-12 |
|
|
|
| MS-14 |
|
|
|
| MS-3 |
|
|
|
| MS-4 |
|
|
|
| MS-5 |
|
|
|
| MS-6 |
|
|
|
| MS-7 |
|
|
|
| MS-9 |
|
|
|
