品牌： 韩国瑞岩SEOAM
爪数： 单爪
动力类型： 液压
特殊用途类型： 中实

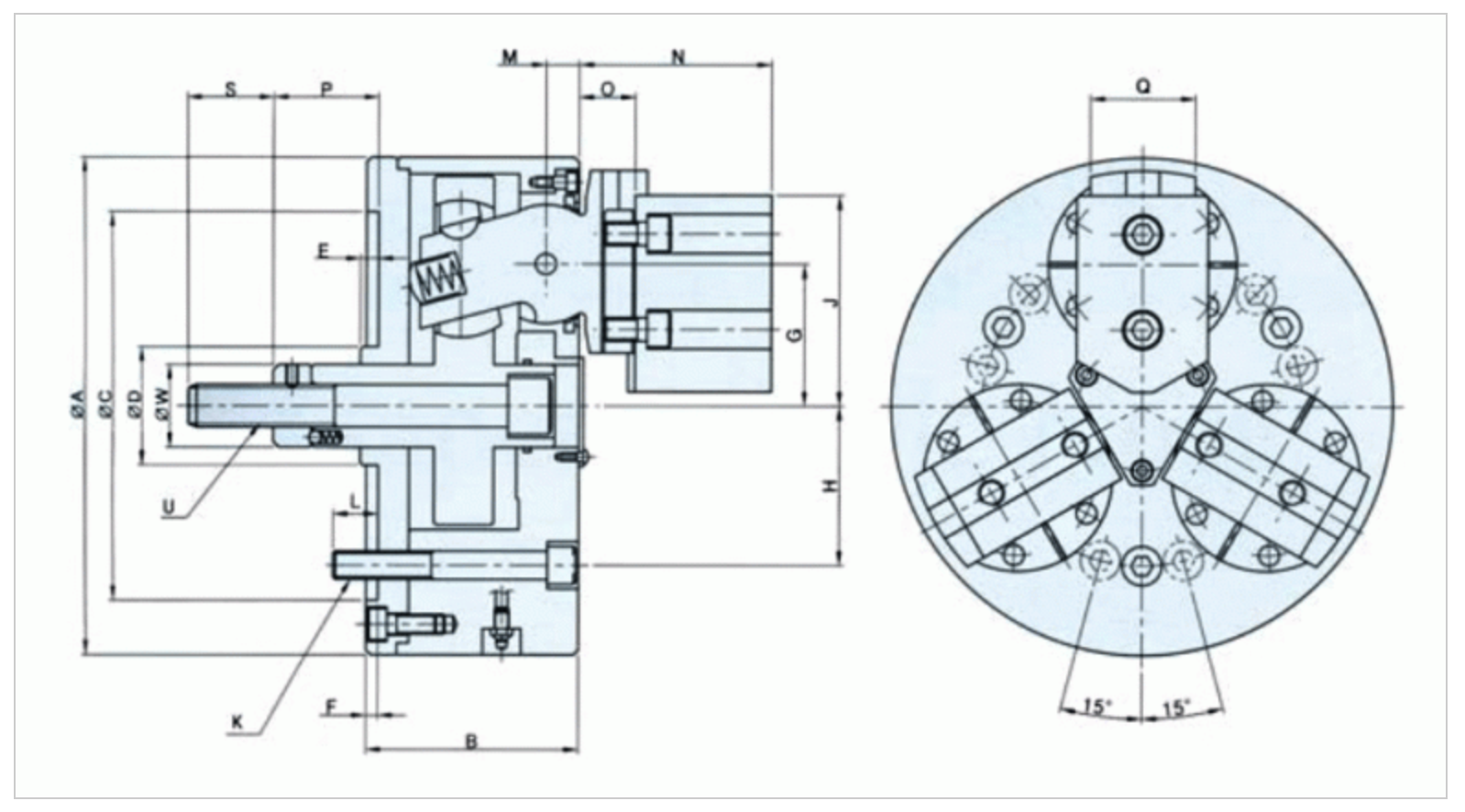

Item Model | A | B | C | D | E | F | G | H | J | K | |
C63M-06 | 175 | 77 | 140 | 42 | 5 | 5 | 51 | 104.8 | 73.1 | 3-M10X1.5 | |
C63M-08 | 210 | 89 | 190 | 50 | 5 | 5 | 60 | 133.4 | 88.9 | 3-M16X2 | |
C63M-10 | 254 | 106 | 230 | 58 | 5 | 5 | 72 | 171.4 | 112.7 | 3-M16X2 | |
C63M-12 | 304 | 108 | 2820 | 66 | 5 | 5 | 92.5 | 171.4 | 133.2 | 6-M16X2 | |
Item Model | L | M | N | O | P Max | P Min | Q | S | W | ||
C63M-06 | 14 | 13.5 | 44.2 | 19.3 | 43.9 | 32.5 | 38.1 | 38 | M16X2 | 32 | |
C63M-08 | 20 | 19.5 | 65.6 | 29.1 | 67.5 | 50 | 44.4 | 46 | M24X3 | 45 | |
C63M-10 | 20 | 19.5 | 65.6 | 29.1 | 67.5 | 50 | 57.1 | 46 | M24X3 | 45 | |
C63M-12 | 20 | 19.5 | 65.6 | 29.1 | 74.5 | 57 | 57.1 | 50 | M27X3 | 53 | |
Spec Model | Order NO. | Jaw stroke(Diameter) mm | Plunger stroke mm | Gripping Max | Gripping Min | Max. permissible input force KN(kgf) |
C63M-06 | 1C6306 | 7.4 | 11.4 | 120.0 | 12 | 21.6(2200) |
C63M-08 | 1C6308 | 9.2 | 14.4 | 150.0 | 16 | 28.4(2900) |
C63M-10 | 1C6310 | 11.8 | 17.5 | 205.0 | 50 | 35.3(3600) |
C63M-12 | 1C6312 | 11.8 | 17.5 | 240.0 | 63 | 35.3(3600) |
Spec Model | Max. static gripping force KN(kgf) | Max. Permissible speed r.p.m | weight(With standard soft jaws) | Gd moment of inertia | matching cylinder | |
C63M-06 | 64.7(6600) | 3800 | 14 | 0.49(0.05) | YAS,C,P,T-100 | |
C63M-08 | 85.3(8700) | 3000 | 23 | 1.02(0.11) | YAS,C,P,T-125 | |
C63M-10 | 106(10800) | 2000 | 59 | 5.88(0.60) | YAS,C,P,T-150 | |
C63M-12 | 106(10800) | 2000 | 59 | 5.88(0.60) | YAS,C,P,T-150 | |
| Model | 2D pdf | 2D dwg | 3D step |
|---|
