品牌： 韩国瑞岩SEOAM
动力分类： 中实
结构分类： 油缸回转缸
功能分类： 注气

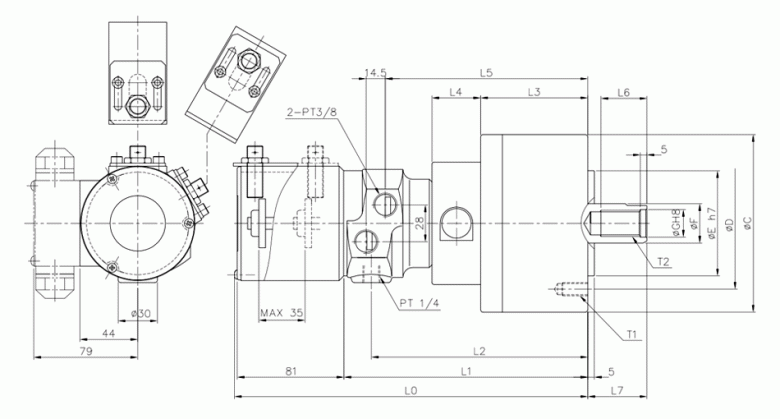

Item Model | C | D | E | F | G | L0 | L1 | L2 |
YASTL-200 | 245 | 145 | 120 | 55 | 37 | 336.5 | 238.5 | 220 |
Item Model | L3 | L4 | L5 | L6 | L7 Max | L7 Min | T1 | T2 |
YASTL-200 | 137 | 37 | 209.5 | 60 | 80 | 30 | 6-M16 | M36XP4.0 |
Spec Model | Order NO. | Max. Permissible speed r.p.m | weight(With standard soft jaws) | Gd moment of inertia | Cylinder dia | Piston stroke | Piston surface area extend |
YASTL-200 | 2ASTL20 | 5500 | 24 | 0.42(0.05) | 200 | 50 | 330 |
Spec Model | Piston surface area retract | Max draw bar pull extend | Max draw bar pull retract | Max operation pressure | Total leakage | Matching chuck | |
YASTL-200 | 306 | 121.6(12404) | 112.8(11505) | 40.8 | 1.0 | CAS-15,18,21,24,32 |
| Model | 2D pdf | 2D dwg | 3D step |
|---|---|---|---|
| YASTL-200 |
|
|
|
