品牌： 韩国瑞岩SEOAM
动力分类： 中实
结构分类： 油缸回转缸
功能分类： 注气

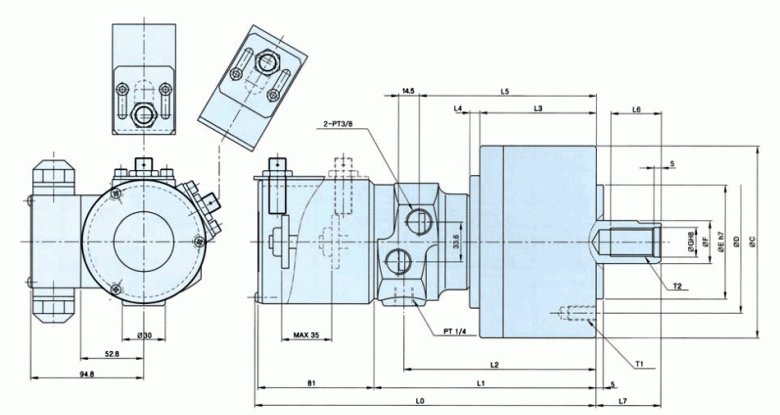

Item Model | C | D | E | F | G | L0 | L1 | L2 |
YASP-100 | 135 | 100 | 80 | 30 | 21 | 236 | 155 | 134 |
YASP-125 | 160 | 130 | 110 | 35 | 25 | 246 | 165 | 144 |
YASP-150 | 185 | 130 | 110 | 45 | 30.5 | 253 | 172 | 151 |
YASP-200 | 245 | 145 | 120 | 55 | 37 | 276.5 | 195.5 | 174.5 |
Item Model | L3 | L4 | L5 | L6 | L7 Max | L7 Min | T1 | T2 |
YASP-100 | 81.5 | 6.5 | 123.5 | 35 | 45 | 25 | 6-M10X19 | M20XP2.5 |
YASP-125 | 91.5 | 6.5 | 133.5 | 40 | 50 | 25 | 6-M12X22 | M24XP3.0 |
YASP-150 | 98.5 | 6.5 | 140.5 | 45 | 55 | 25 | 6-M12X20 | M30XP3.5 |
YASP-200 | 122 | 6.5 | 164 | 60 | 69 | 34 | 6-M16X29 | M36XP4.0 |
Spec Model | Order NO. | Max. Permissible speed r.p.m | weight(With standard soft jaws) | Gd moment of inertia | Cylinder dia | Piston stroke | Piston surface area extend |
YASP-100 | 2ASP10 | 6000 | 5.8 | 0.49(0.05) | 105 | 20 | 86.5 |
YASP-125 | 2ASP12 | 6000 | 7.9 | 0.88(0.09) | 130 | 25 | 132.5 |
YASP-150 | 2ASP15 | 5500 | 10.8 | 1.47(0.15) | 150 | 30 | 176.0 |
YASP-200 | 2ASP10 | 5500 | 20.0 | 3.62(0.37) | 205 | 35 | 330.0 |
Spec Model | Piston surface area retract | Max draw bar pull extend | Max draw bar pull retract | Max operation pressure | Total leakage | Matching chuck | |
YASP-100 | 79.5 | 31.8(3244) | 29.3(2989) | 40.8 | 1.0 | CAS-06 | |
YASP-125 | 123.0 | 48.8(4978) | 45.3(4621) | 40.8 | 1.0 | CAS-08, 10 | |
YASP-150 | 160.0 | 64.8(6610) | 60.0(6120) | 40.8 | 1.0 | CAS-10, 12 | |
YASP-200 | 306.0 | 121.6(12404) | 112.8(11505) | 40.8 | 1.0 | CAS-15,18,21,24,32 |
| Model | 2D pdf | 2D dwg | 3D step |
|---|---|---|---|
| YASP-100 |
|
|
|
| YASP-125 |
|
|
|
| YASP-150 |
|
|
|
| YASP-200 |
|
|
|
