品牌： 韩国瑞岩SEOAM
爪数： 二爪
动力类型： 液压
特殊用途类型： 中空

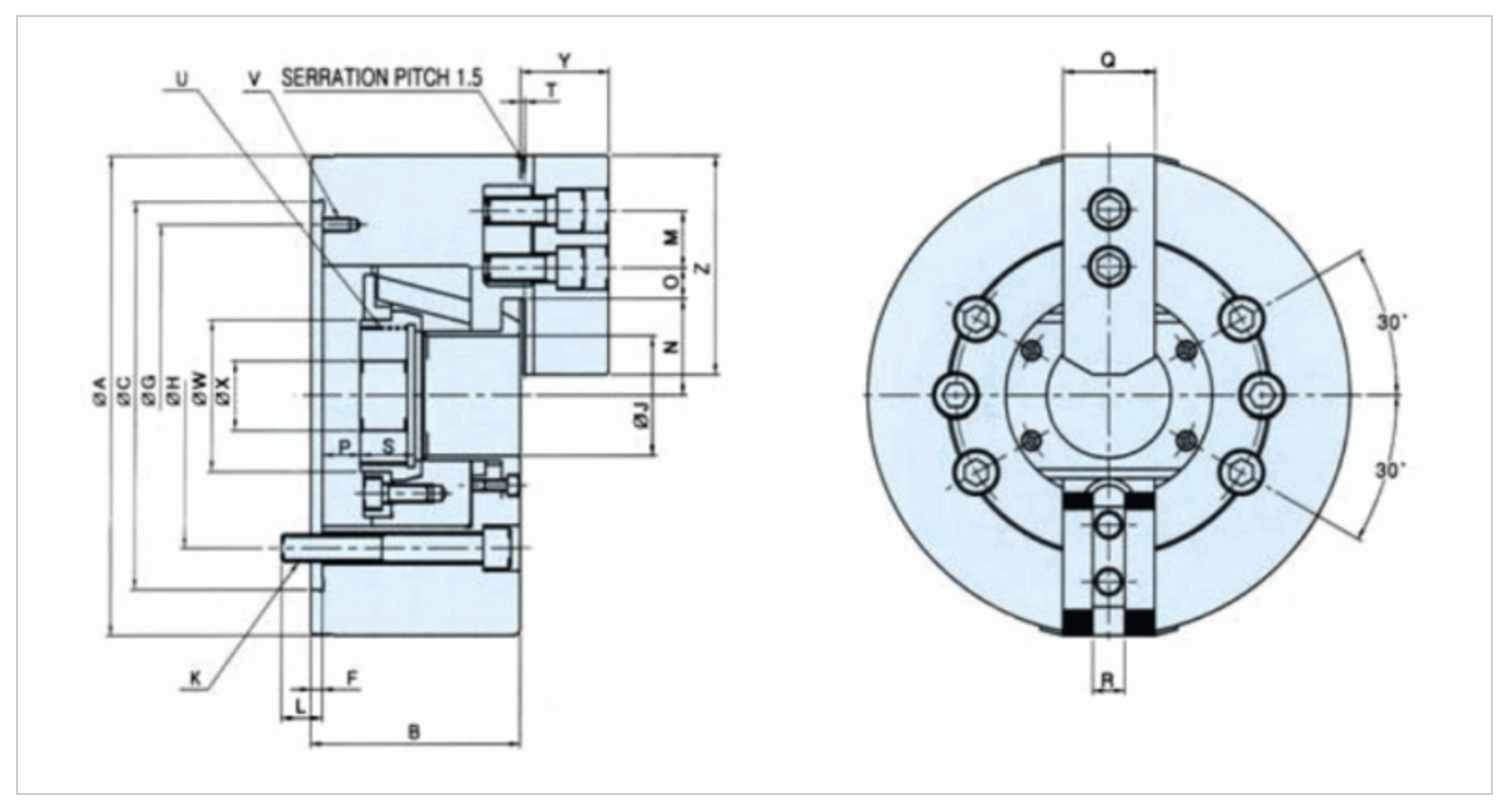

Item Model | A | B | C | F | H | J | K | L | M | N Max | N Min | O Max | O Min |
CGHT-08 | 210 | 910 | 170 | 5 | 133.4 | 66 | 6-M12 | 20 | 25 | 46.2 | 42.4 | 23.25 | 10.25 |
Item Model | P Max | P Min | Q | R | S | T | U Max | V | W | X | Y | Z | |
CGHT-08 | 7 | -11 | 39 | 14 | 27 | 2 | M75X2.0 | 3-M6 | 80 | 30 | 39 | 95 |
Spec Model | Order NO. | Spindle nose NO. | Thru-hole(Diameter) mm | Jaw stroke(Diameter) mm | Plunger stroke mm | Gripping Max | Gripping Min | Max. permissible input force KN(kgf) |
CGHT-08 | 1GHT08 | A2-6 | 66 | 7.6 | 18 | 210 | 11 | 38(3900) |
Spec Model | Max. static gripping force KN(kgf) | Max. Permissible speed r.p.m | weight(With standard soft jaws) | Gd moment of inertia | matching cylinder | Matching hard jaw | Matching soft jaw | |
CGHT-08 | 94(9597) | 5000 | 23 | 5.59(0.57) | YSGH-08 | HJ-08T1 | SJ-08T1 |
| Model | 2D pdf | 2D dwg | 3D step |
|---|---|---|---|
| CGHT-08 |
|
|
|
