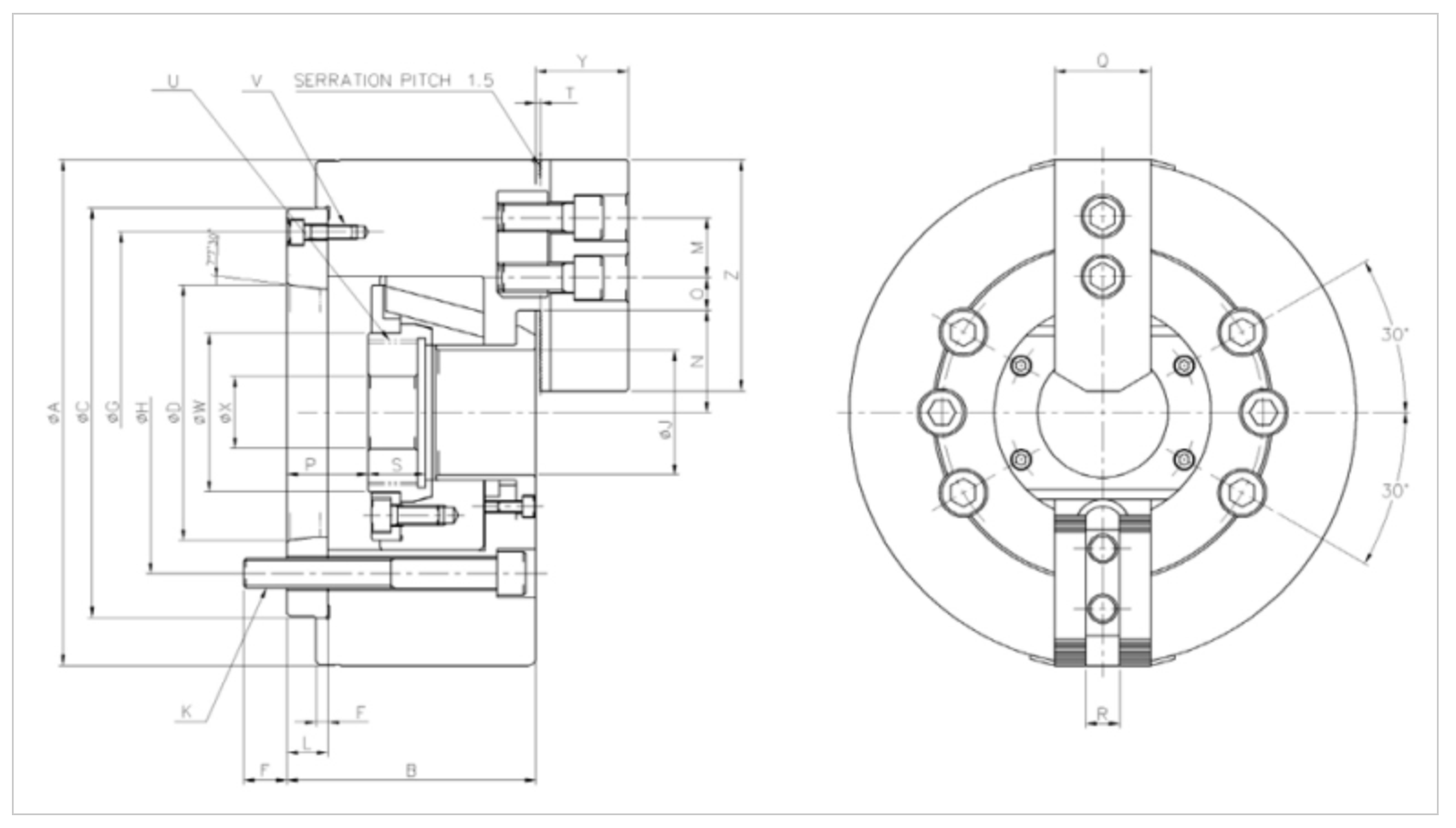

2-JAW 大通孔动力卡盘

Spec Model	Order NO.	Spindle nose NO.	Thru-hole(Diameter) mm	Jaw stroke(Diameter) mm	Plunger stroke mm	Gripping Max	Gripping Min
CAHT-06	1AHT06	A2-5	46	5.5	13	169	13
CAHT-08	1AHT08	A2-6	52	7.6	18	169	13
CAHT-10	1AHT10	A2-8	77	8.5	20	254	31
CAHT-12	1AHT12	A2-8	91	10.2	24	304	34
CAHT-15	1AHT15	A2-11	118	10.6	23	381	30
Spec Model	Max. permissible input force KN(kgf)	Max. static gripping force KN(kgf)	Max. Permissible speed r.p.m	weight(With standard soft jaws)	Gd moment of inertia	matching cylinder	Matching soft jaw
CAHT-06	16.6(1700)	42(4284)	6000	12.3	2.20(0.22)	YAH-06	SJ-06T1
CAHT-08	16.6(1700)	63(6398)	5000	21.7	6.86(0.70)	YAH-08	SJ-08T1
CAHT-10	33.3(3400)	83.3(8493)	4200	33.7	12.55(1.28)	YAH-10	SJ-10T1
CAHT-12	39(3995)	100(10200)	3300	51	26.47(2.7)	YAH-12	SJ-12A1
CAHT-15	47(12236)	120(12236)	2500	115	87.25(8.90)	YAH,YSH-15	SJ-15T1

截屏2022-08-26 下午5.20.12.png

Spec Model	Order NO.	Spindle nose NO.	Thru-hole(Diameter) mm	Jaw stroke(Diameter) mm	Plunger stroke mm	Gripping Max	Gripping Min
CAHTA-06	1AHT06	A2-5	46	5.5	13	169	13
CAHTA-08	1AHT08	A2-6	52	7.6	18	210	11
CAHTA-10	1AHT10	A2-8	77	8.5	20	254	31
CAHTA-12	1AHT12	A2-8	91	10.2	24	304	34
CAHTA-15	1AHT15	A2-11	118	10.6	23	381	30
Spec Model	Max. permissible input force KN(kgf)	Max. static gripping force KN(kgf)	Max. Permissible speed r.p.m	weight(With standard soft jaws)	Gd moment of inertia	matching cylinder	Matching soft jaw
CAHTA-06	16.6(1700)	42(4284)	6000	12.3	2.20(0.22)	YAH-06	SJ-06B1
CAHTA-08	26.6(2720)	63(6398)	5000	21.7	6.86(0.70)	YAH-08	SJ-08B1
CAHTA-10	33.3(3400)	100(10200)	3300	51	26.47(2.7)	YAH-12	SJ-12B1
CAHTA-12	39(3995)	100(10200)	3300	51	26.47(2.7)	YAH-12	SJ-12B1
CAHTA-15	47(12236)	120(12236)	2500	115	87.25(8.90)	YAH,YSH-15	SJ-15B1
