园牌三爪自定心卡盘D型

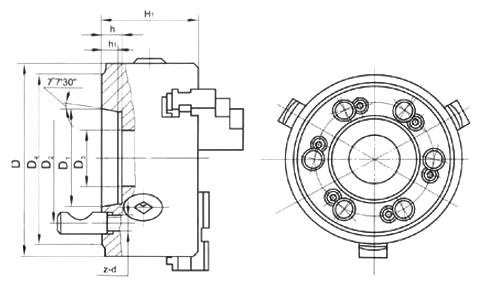

规格/型式	D	D1	D2	D3	D4	H1	h	h1	z-d
K11125/D3	125	53.975	70.6	25	92	63	13	10	3-M10×1
K11125/D4	125	63.513	82.6	25	117	63	13	10	3-M10×1
K11160/D3、K11160A/D3	160	53.975	70.6	40	92	80	13	10	3-M10×1
K11160/D4、K11160A/D4	160	63.513	82.6	40	117	73	13	10	3-M10×1
K11160/D5、K11160A/D5	160	82.563	104.8	40	146	78	15	12	6-M12×1
K11200/D4、K11200A/D4	200	63.513	82.6	60	117	88	-	10	3-M10×1
K11200/D5、K11200A/D5	200	82.563	104.8	50	146	88	15	12	6-M12×1
K11200/D6、K11200A/D6	200	106.375	133.4	60	181	88	16	13	6-M16×1.5
K11250/D5、K11250A/D5	250	82.563	104.8	79	146	95	-	12	6-M12×1
K11250/D6、K11250A/D6	250	106.375	133.4	70	181	95	16	13	6-M16×1.5
K11250/D8、K11250A/D8	250	139.719	171.4	80	225	98	18	14	6-M20×1.5
K11315/D6、K11315A/D6	315	106.375	133.4	100	181	112	16	13	6-M16×1.5
K11315/D8、K11315A/D8	315	139.719	171.4	105	225	112	18	14	6-M20×1.5
K11315/D11、K11315A/D11	315	196.869	235	100	298	112	20	16	6-M22×1.5
K11320/D6、K11320A/D6	320	106.375	133.4	100	181	112	16	13	6-M16×1.5
K11320/D8、K11320A/D8	320	139.719	171.4	105	225	112	18	14	6-M20×1.5
K11320/D11、K11320A/D11	320	196.869	235	100	298	112	20	16	6-M22×1.5
K11325/D6、K11325A/D6	325	106.375	133.4	100	181	112	16	13	6-M16×1.5
K11325/D8、K11325A/D8	325	139.719	171.4	105	225	112	18	14	6-M20×1.5
K11325/D11、K11325A/D11	325	196.869	235	100	298	112	20	16	6-M22×1.5
K11380/D8、K11380A/D8	380	139.719	171.4	130	225	122	18	14	6-M20×1.5
K11380/D11、K11380A/D11	380	196.869	235	130	298	122	20	16	6-M22×1.5
K11400/D8、K11400A/D8	400	139.719	171.4	130	225	122	18	14	6-M20×1.5
K11400/D11、K11400A/D11	400	196.869	235	130	298	122	20	16	6-M22×1.5
K11500/D11、K11500A/D11	500	196.869	235	190	298	135	-	16	6-M22×1.5
K11500/D15、K11500A/D15	500	285.775	330.2	200	403	135	21	17	6-M24×1.5
K11630/D11、K11630A/D11	630	196.869	235	190	298	160	-	16	6-M22×1.5
K11630/D15、K11630A/D15	630	285.775	330.2	260	403	160	21	17	6-M24×1.5
K11800A/D15	800	285.775	330.2	260	403	186	21	17	6-M24×1.5
K11800A/D20	800	412.775	463.6	385	546	186	23	19	6-M27×2

Model	2D pdf	2D dwg	3D step
