品牌： 比优特BEUT
爪数： 三爪
动力类型： 气动
特殊用途类型： 中空
| 规格 Specifications | 爪行程t(直径) Jaw stroke t (Diameter) | 最大夹紧力kN Max.gripping force (kN) | 最大撑紧力kN Max.bracing force (kN) | 许用压力Mpa Allowable pressure (Mpa) | 极限转速r/min Limited rotating speed (r/min) | 夹紧范围 Clamping range | 撑紧范围 Bracing range | 净重kg Net weight (kg) |
| BK160KQ | 3.7 | 32.9 | 18.5 | 0.4~0.8 | 4500 | 2-170 | 20-180 | 15 |
| BK200KQ | 4.2 | 49.1 | 29.1 | 0.4～0.8 | 4500 | 5-210 | 20-240 | 23 |
| BK250KQ | 4.8 | 58.7 | 32.5 | 0.4～0.8 | 2800 | 10-260 | 30-280 | 32 |
| BK320KQ | 9.5 | 106.1 | 62.2 | 0.4~0.8 | 2300 | 10-350 | 40-360 | 76 |
| BK400KQ | 12.7 | 137.8 | 77 | 0.4~0.8 | 1000 | 15-420 | 50-430 | 140 |

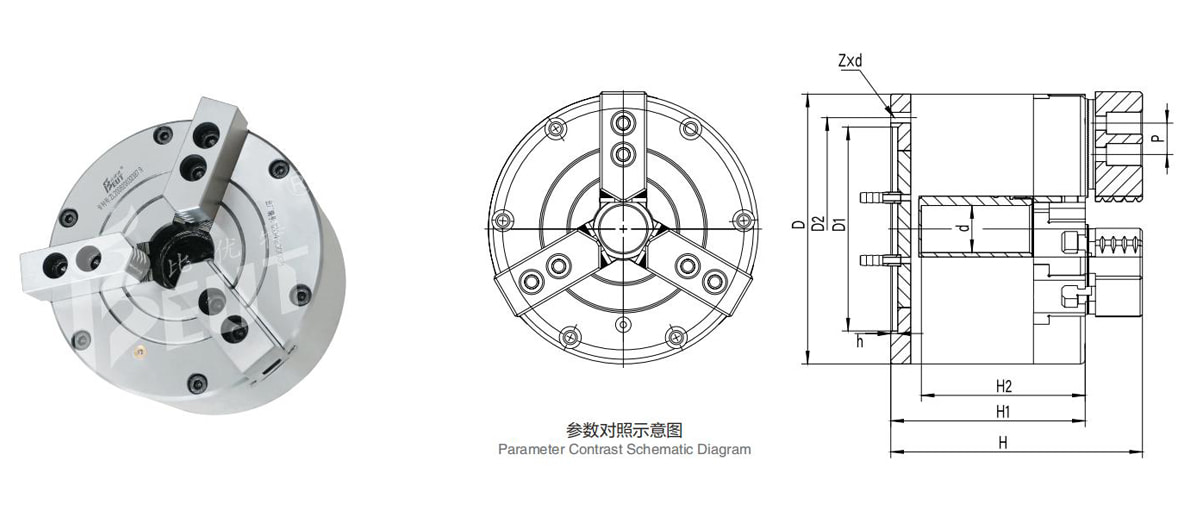

尺寸参数 / Dimensions
| 规格 Specifications | D | D1 | D2 | d | H | H1 | H2 | h | p | Z×d | 动力楔块齿形 | 对应卡爪型号 |
| BK160KQ | 172 | 130 | 142 | 30 | 135.5 | 99.5 | 84 | 4.5 | 20 | 3-M8 | 1×53° | BK160Z1 |
| BK200KQ | 210 | 165 | 180 | 40 | 139.5 | 103.5 | 85.5 | 4.5 | 25 | 3-M10 | 1×53° | BK200Z1 |
| BK250KQ | 250 | 206 | 226 | 80 | 154 | 108 | 90.5 | 5 | 30 | 3-M12 | 1×53° | BK250Z1 |
| BK320KQ | 325 | 270 | 290 | 120 | 221 | 160 | 140.5 | 5 | 32 | 6-M12 | 1.5×60° | BK320Z2-60 |
| BK400KQ | 400 | 340 | 368 | 120 | 242 | 168 | 147 | 6 | 40 | 6-M16 | 1.5×60° | - |
| 注：以上数据为标准参数，也可以根据客户特殊要求设计。 Note: above numbers are standard parameters. We can also design products according to clients' special requirements. | ||||||||||||
| Model | 2D pdf | 2D dwg | 3D step |
|---|
