品牌： 韩国瑞岩SEOAM
爪数： 单爪
动力类型： 液压
特殊用途类型： 中空

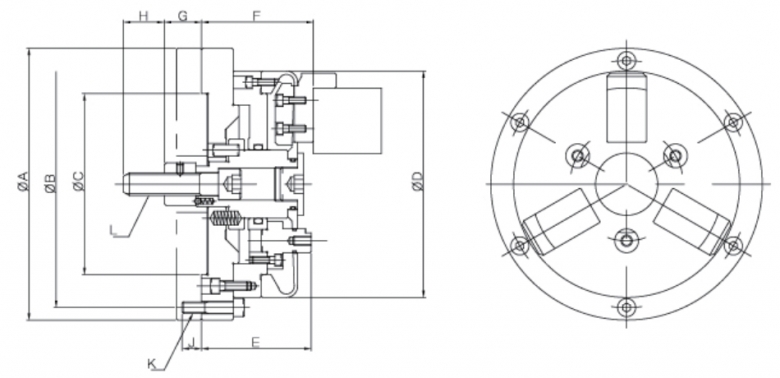

Item Model | A | B | D | E | F | H |
SM-DPM 06 | 200 | 175 | 160 | 92 | 94 | 36 |
SM-DPM 08 | 250 | 225 | 200 | 97 | 99 | 36 |
SM-DPM 10 | 305 | 275 | 250 | 102 | 104 | 46 |
SM-DPM 12 | 375 | 340 | 280 | 107 | 109 | 50 |
SM-DPM 16 | 475 | 435 | 400 | 140 | 142 | 55 |
Item Model | J | K | L | Cro | G MAX | G MIN |
SM-DPM 06 | 17 | 6-M10 | M10 | 110 | 36 | 31 |
SM-DPM 08 | 18 | 6-M10 | 160 | 36 | 31 | |
SM-DPM 10 | 20 | 6-M12 | M24 | 220 | 42 | 37 |
SM-DPM 12 | 22 | 6-M12 | M27 | 280 | 55 | 50 |
SM-DPM 16 | 25 | 6-M16 | M30 | 320 | 65 | 60 |
Spec Model | Jaw stroke(Diameter) mm | Plunger stroke mm | Gripping Max | Gripping Min |
SM-DPM 06 | 3Jaw | 5 | 3 | 76 |
SM-DPM 08 | 3Jaw, 6Jaw | 5 | 12 | 120 |
SM-DPM 10 | 3Jaw, 6Jaw | 5 | 25 | 152 |
SM-DPM 12 | 3Jaw, 6Jaw | 5 | 75 | 203 |
SM-DPM 16 | 6Jaw | 5 | 140 | 270 |
Spec Model | Max. Permissible speed r.p.m | weight(With standard soft jaws) | matching cylinder | |
SM-DPM 06 | 3800 | 14.5 | YAS-100 | |
SM-DPM 08 | 3000 | 23 | YAS-125 | |
SM-DPM 10 | 2600 | 35 | YAS-150 | |
SM-DPM 12 | 2200 | 58 | YAS-150 | |
SM-DPM 16 | 1600 | 58 | YAS-150 |
| Model | 2D pdf | 2D dwg | 3D step |
|---|
