品牌： 韩国瑞岩SEOAM
爪数： 单爪
动力类型： 液压
特殊用途类型： 分度

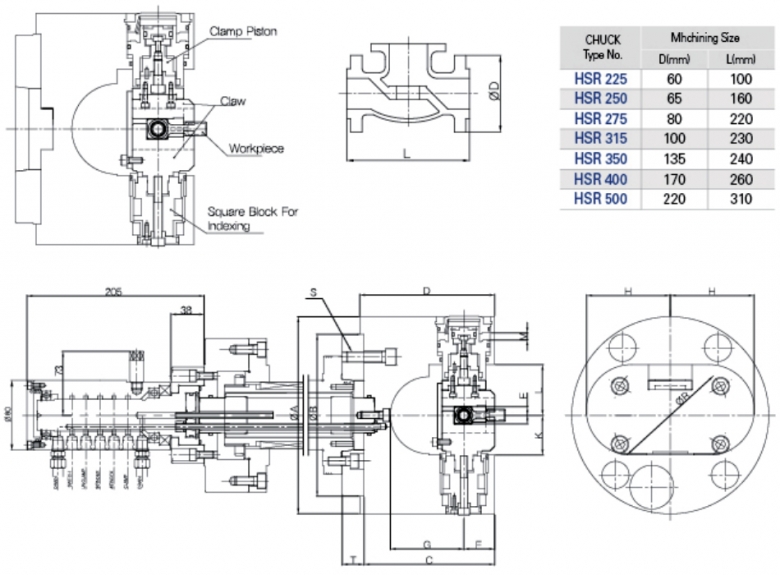

Item Model | A | C | D | F | G | H | K |
SM-HSR 225 | 225 | 149 | 154 | 35 | 84 | 84 | 46 |
SM-HSR 250 | 250 | 185 | 190 | 40 | 113 | 113 | 46 |
SM-HSR 275 | 275 | 208 | 213 | 48 | 125 | 125 | 57 |
SM-HSR 315 | 315 | 227 | 232 | 50 | 136 | 136 | 70 |
SM-HSR 350 | 350 | 235 | 240 | 50 | 148 | 145 | 84 |
SM-HSR 400 | 400 | 254 | 259 | 60 | 160 | 165 | 100 |
SM-HSR 500 | 500 | 301 | 308 | 68 | 200 | 205 | 133 |
Item Model | L | M | R | S | T | Bro | |
SM-HSR 225 | 58 | 14.5 | 133.4 | 4-M12 | 25 | 185 | |
SM-HSR 250 | 55 | 20 | 133.4 | 4-M12 | 25 | 210 | |
SM-HSR 275 | 67 | 20.5 | 171.4 | 4-M16 | 25 | 210 | |
SM-HSR 315 | 85 | 22 | 171.4 | 4-M16 | 235 | ||
SM-HSR 350 | 102 | 23 | 235 | 4-M20 | 30 | 290 | |
SM-HSR 400 | 114 | 30 | 235 | 4-M20 | 30 | 290 | |
SM-HSR 500 | 157 | 35 | 235/330.2 | 4-M20/4-M24 | 35 | 380 |
Spec Model | weight(With standard soft jaws) | Gripping force | Lathe Spindle |
SM-HSR 225 | 29 | 12.4(1.270) | ASA No.6~8 |
SM-HSR 250 | 44 | 17(1,730) | ASA No.6~8 |
SM-HSR 275 | 56 | 25(2,550) | ASA No.6~8 |
SM-HSR 315 | 75 | 25(2,550) | ASA No.6~8 |
SM-HSR 350 | 100 | 25(2,550) | ASA No11 |
SM-HSR 400 | 145 | 34.6(3,530) | ASA No11 |
SM-HSR 500 | 230 | 45.8(4,670) | ASA No.15 |
Spec Model | Main spindle bore speed | GD2 | |
SM-HSR 225 | Over 45 | 8.82(0.9) | |
SM-HSR 250 | Over 45 | 16.66(1.7) | |
SM-HSR 275 | Over 45 | 27.44(2.8) | |
SM-HSR 315 | Over 55 | 49(5.0) | |
SM-HSR 350 | Over 55 | 78.4(8.0) | |
SM-HSR 400 | Over 55 | 147(15.0) | |
SM-HSR 500 | Over 55 | 248.92(25.4) |
| Model | 2D pdf | 2D dwg | 3D step |
|---|
