品牌： 韩国瑞岩SEOAM
爪数： 单爪
动力类型： 液压
特殊用途类型： 中空

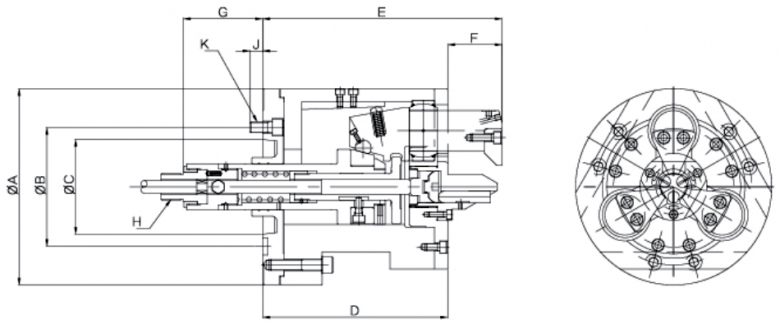

Item Model | A | B | C | D | F | J |
SM-CBN 230 | 230 | 133.4 | 106.719 | 233 | 55 | 18 |
SM-CBN 250 | 250 | 133.4 | 106.719 | 225 | 52 | 18 |
SM-CBN 300 | 300 | 171.4 | 196.869 | 244 | 55 | 22 |
Item Model | K | E MAX | E MIN | G MAX | G MIN | |
SM-CBN 230 | 6-M12 | 290 | 235 | 186 | 108 | |
SM-CBN 250 | 6-M12 | 278 | 226 | 199 | 121 | |
SM-CBN 300 | 6-M12 | 306 | 251 | 141 | 66 |
Spec Model | Gripping Max | Gripping Min | Max. permissible input force KN(kgf) | Max. static gripping force KN(kgf) |
SM-CBN 230 | 110 | 20 | 45(2580) | 75(7600) |
SM-CBN 250 | 110 | 25 | 75(7600) | 100(10200) |
SM-CBN 300 | 140 | 40 | 80(8150) | 120(12200) |
Spec Model | Max. Permissible speed r.p.m | weight(With standard soft jaws) | matching cylinder | GD2 |
SM-CBN 230 | 3500 | 68 | 120/80 | 4.12(0.42) |
SM-CBN 250 | 3000 | 85 | 160/80 | 7.74(0.79) |
SM-CBN 300 | 2500 | 120 | 160/80 | 13.23(1.35) |
| Model | 2D pdf | 2D dwg | 3D step |
|---|
