品牌： 韩国瑞岩SEOAM
爪数： 四爪
动力类型： 液压
特殊用途类型： 中实

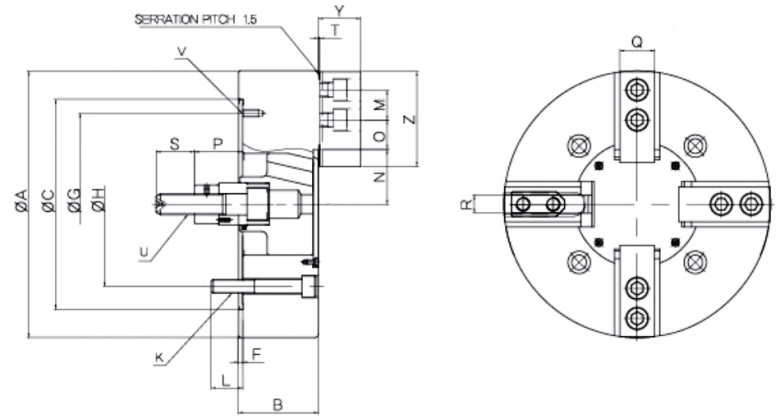

Item Model | A | B | F | G | H | K | L | M | N Max | N Min | O Max | O Min |
CASF-08 | 210 | 85 | 5 | 150 | 133.4 | 4-M12 | 15 | 25 | 46.5 | 41.9 | 22.5 | 9 |
CASF-10 | 254 | 89 | 5 | 190 | 171.4 | 4-M16 | 18 | 30 | 51.1 | 46.7 | 30.7 | 11.2 |
CASF-12 | 304 | 106 | 6 | 190 | 171.4 | 4-M16 | 18 | 30 | 61 | 55.7 | 48.7 | 12.7 |
Item Model | P Max | P Min | Q | R | S | T | U Max | V | Y | Z | Cro | |
CASF-08 | 127 | 106 | 39 | 14 | 36 | 5 | M20 | 4-M6 | 43 | 95 | 170 | |
CASF-10 | 158 | 133 | 44 | 16 | 36 | 5 | M20 | 4-M8 | 50 | 110 | 220 | |
CASF-12 | 163 | 133 | 50 | 18 | 36 | 5 | M20 | 4-M8 | 54 | 111 | 220 |
Spec Model | Jaw stroke(Diameter) mm | Plunger stroke mm | Gripping Max | Gripping Min | Max. permissible input force KN(kgf) |
CASF-08 | 8.8 | 21 | 210 | 23 | 28(2856) |
CASF-10 | 8.8 | 25 | 254 | 24 | 32.5(3315) |
CASF-12 | 10.5 | 30 | 304 | 26 | 41.5(4233) |
Spec Model | Max. static gripping force KN(kgf) | Max. Permissible speed r.p.m | weight(With standard soft jaws) | Gd moment of inertia | matching cylinder |
CASF-08 | 80(8160) | 4800 | 26 | 5.39(0.55) | YAS-125 |
CASF-10 | 115(11730) | 4100 | 37.7 | 11.17(1.20) | TAS-125 |
CASF-12 | 156(16014) | 3400 | 59.4 | 28.44(2.90) | YAS-150 |
| Model | 2D pdf | 2D dwg | 3D step |
|---|
