品牌： 韩国瑞岩SEOAM
爪数： 单爪
动力类型： 液压
特殊用途类型： 中实

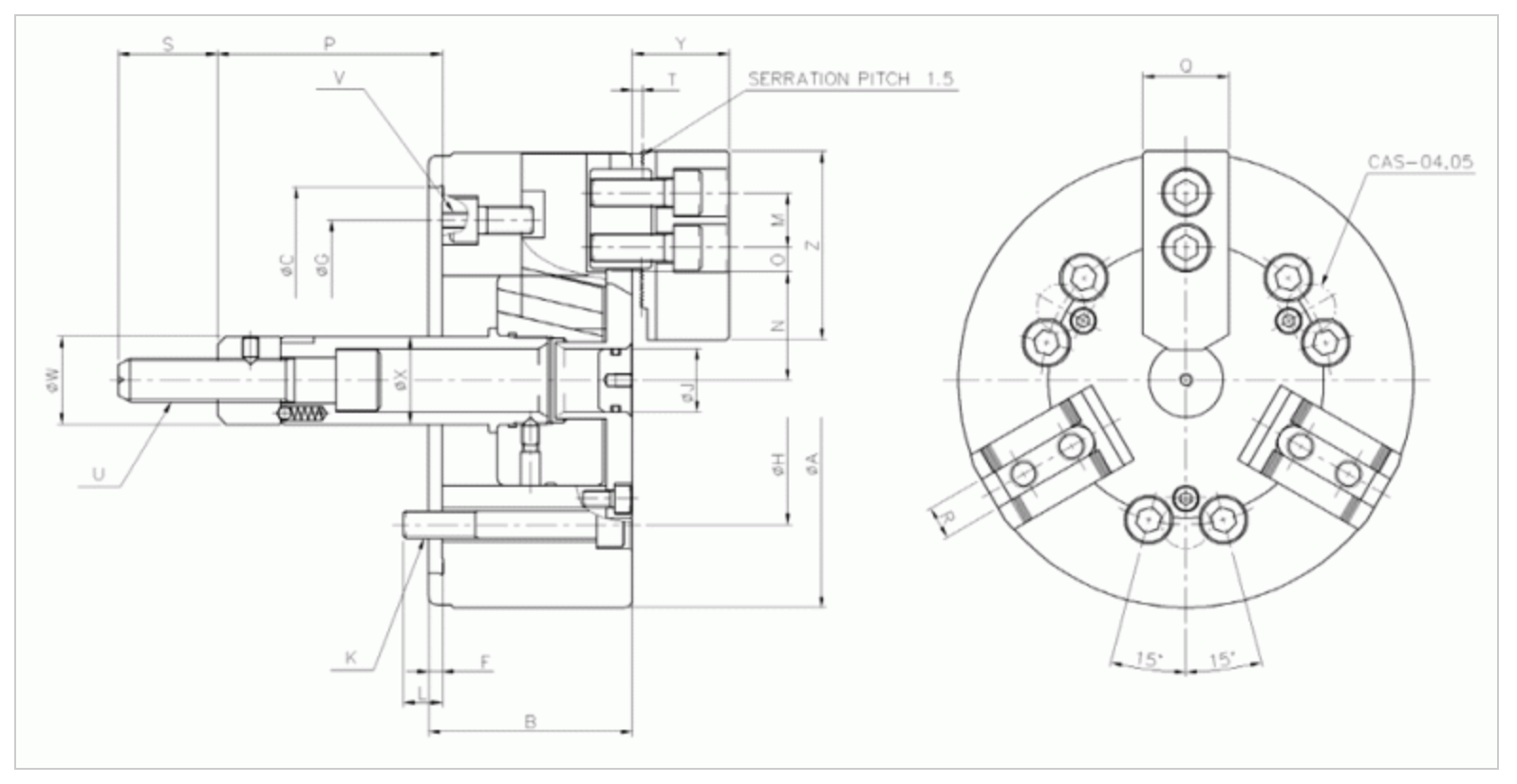

Item Model | A | B | C | F | G | H | J | K | L | M | N Max | N Min | O Max | |
CASL-06 | 165 | 63 | 140 | 5 | 110 | 104.77 | - | 6-M10 | 17 | 20 | 38.75 | 32.25 | 18 | |
CASL-08 | 210 | 77 | 190 | 6 | 223.35 | 140 | - | 6-M12 | 21 | 25 | 42.75 | 34.75 | 30 | |
CASL-32 | 800 | 150 | 380 | 6 | - | 330.2 | - | 6-M24 | 31 | 76.2 | 101 | 85.7 | - | |
Item Model | O Min | P Max | P Min | Q | R | S | T | V | W | X | Y | Z | ||
CASL-06 | 7.5 | 29 | 11 | 30 | 12 | 36 | 5 | M16X2.0 | 3-M8 | 32 | 38 | 34 | 70.5 | |
CASL-08 | 13.5 | 34 | 12 | 35 | 16 | 36 | 5 | M20X2.5 | 3-M10 | 38 | 48 | 44 | 90 | |
CASL-32 | - | 35 | -3 | 75 | 25.5 | 60 | 8 | M30X3.5 | - | 52 | 114 | 83 | 165 | |
Spec Model | Order NO. | Spindle nose NO. | Jaw stroke(Diameter) mm | Plunger stroke mm | Gripping Max | Gripping Min | Max. permissible input force KN(kgf) | |
CASL-06 | 11606 | A2-5 | 13 | 18 | 165 | 20 | 14.7(1500) | |
CASL-08 | 11608 | A2-6 | 16 | 22 | 210 | 22 | 29.4(3000) | |
CASL-32 | 1ASL32 | - | 30.6 | 38 | 800 | 211 | 120(11760) | |
Spec Model | Max. static gripping force KN(kgf) | Max. Permissible speed r.p.m | weight(With standard soft jaws) | Gd moment of inertia | matching cylinder | Matching hard jaw | Matching soft jaw | |
CASL-06 | 32.4(3306) | 4000 | 11 | 1.77(0.18) | YAS,C,P,T-100 | HJ-06T1 | SJ-06A1 | |
CASL-08 | 64.7(6602) | 4000 | 21 | 5.39(0.55) | YAS,C,P,T-125 | HJ-08T1 | SJ-08A1 | |
CASL-32 | 215(21070) | 800 | 341 | 23.8(2.43) | YAS,C,P,T-200 | HJ-32A1 | SJ-32A1 | |
| Model | 2D pdf | 2D dwg | 3D step |
|---|---|---|---|
| CASL-06 |
|
|
|
| CASL-08 |
|
|
|
| CASL-32 |
|
|
|
